Asr wiring diagram

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Vehicle electronic systems › Asr wiring diagram

Wiring diagrams and electrical functionsAsr wiring diagram

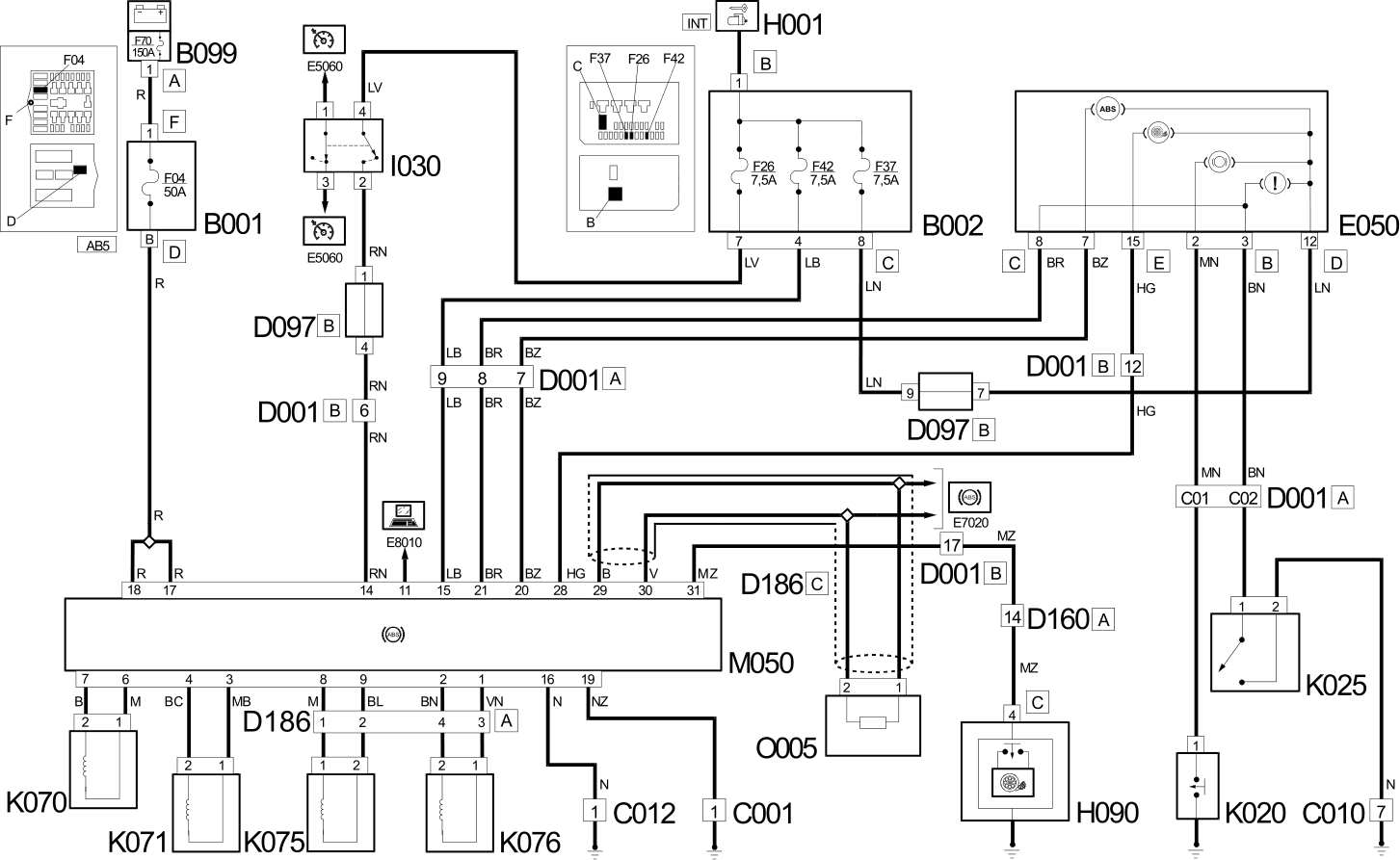

ASR WIRING DIAGRAM

Wiring Diagram

Components

Component code	Description	Reference to the assembly
B001	JUNCTION UNIT	5505A
B002	JUNCTION UNIT UNDER DASHBOARD
B099	MAXI FUSE BOX ON BATTERY
C001	BATTERY EARTH
C010	LEFT FRONT EARTH
C012	ABS FRONT EARTH
D001	FRONT/DASHBOARD COUPLING
D097	SHORT CIRCUITING COUPLING
D160	DASHBOARD/OPTIONAL DASHBOARD COUPLING
D186	FRONT/ABS COUPLING
E050	INSTRUMENT PANEL	5560B
H001	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
H090	SWITCH CONTROL PANEL	Op. 5505A MULTI-FUNCTION COMPONENTS
I030	BRAKE PEDAL SWITCH
K020	LEFT BRAKE PAD WEAR SENSOR (SWITCH)
K025	BRAKE FLUID LEVEL SENSOR (SWITCH)
K070	LEFT FRONT WHEEL SENSOR FOR ABS
K071	RIGHT FRONT WHEEL SENSOR FOR ABS
K075	LEFT REAR WHEEL SENSOR FOR ABS
K076	RIGHT REAR WHEEL SENSOR FOR ABS.
K083	FUEL PRESSURE SENSOR
M050	ABS CONTROL UNIT
O005	LOAD RESISTANCE ON FRONT CABLE

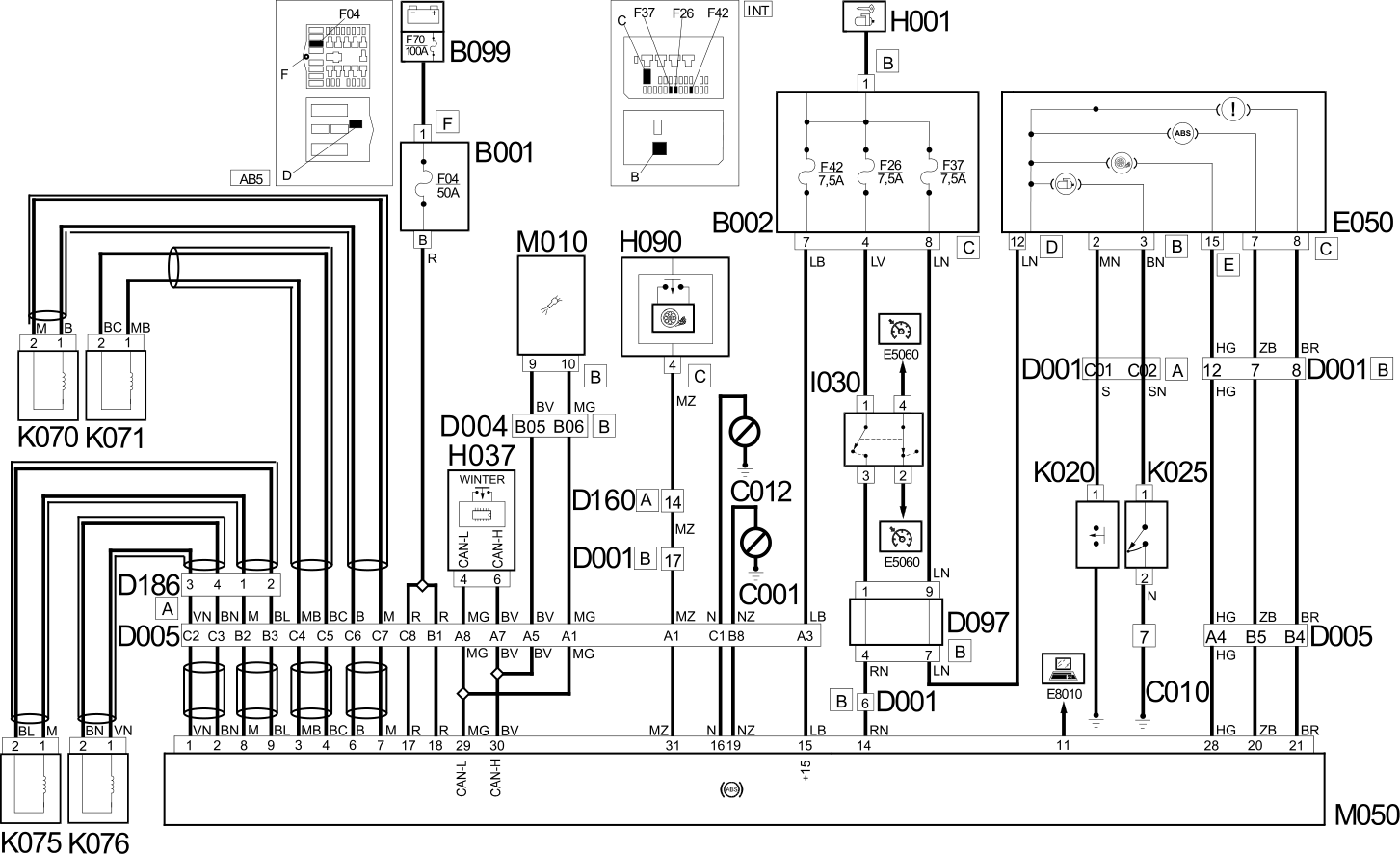

2.8 JTD 8V · Automatic Transmission

Wiring Diagram

Components

Component code	Description	Reference to the assembly
B001	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B002	JUNCTION UNIT UNDER DASHBOARD
B099	MAXI FUSE BOX ON BATTERY
C001	BATTERY EARTH
C012	ABS FRONT EARTH
D001	FRONT/DASHBOARD COUPLING
D005	ABS COUPLING
D097	SHORT CIRCUITING COUPLING
D160	DASHBOARD/OPTIONAL DASHBOARD COUPLING
D186	FRONT/ABS COUPLING
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
H001	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
H037	GEAR CONTROLS
H090	SWITCH CONTROL PANEL	Op. 5505A MULTI-FUNCTION COMPONENTS
I030	BRAKE PEDAL SWITCH
K020	LEFT BRAKE PAD WEAR SENSOR (SWITCH)
K025	BRAKE FLUID LEVEL SENSOR (SWITCH)
K070	LEFT FRONT WHEEL SENSOR FOR ABS
K071	RIGHT FRONT WHEEL SENSOR FOR ABS
K075	LEFT REAR WHEEL SENSOR FOR ABS
K076	RIGHT REAR WHEEL SENSOR FOR ABS.
M010	ENGINE MANAGEMENT ECU
M050	ABS CONTROL UNIT
