AUTOMATIC TRANSMISSION WIRING DIAGRAM

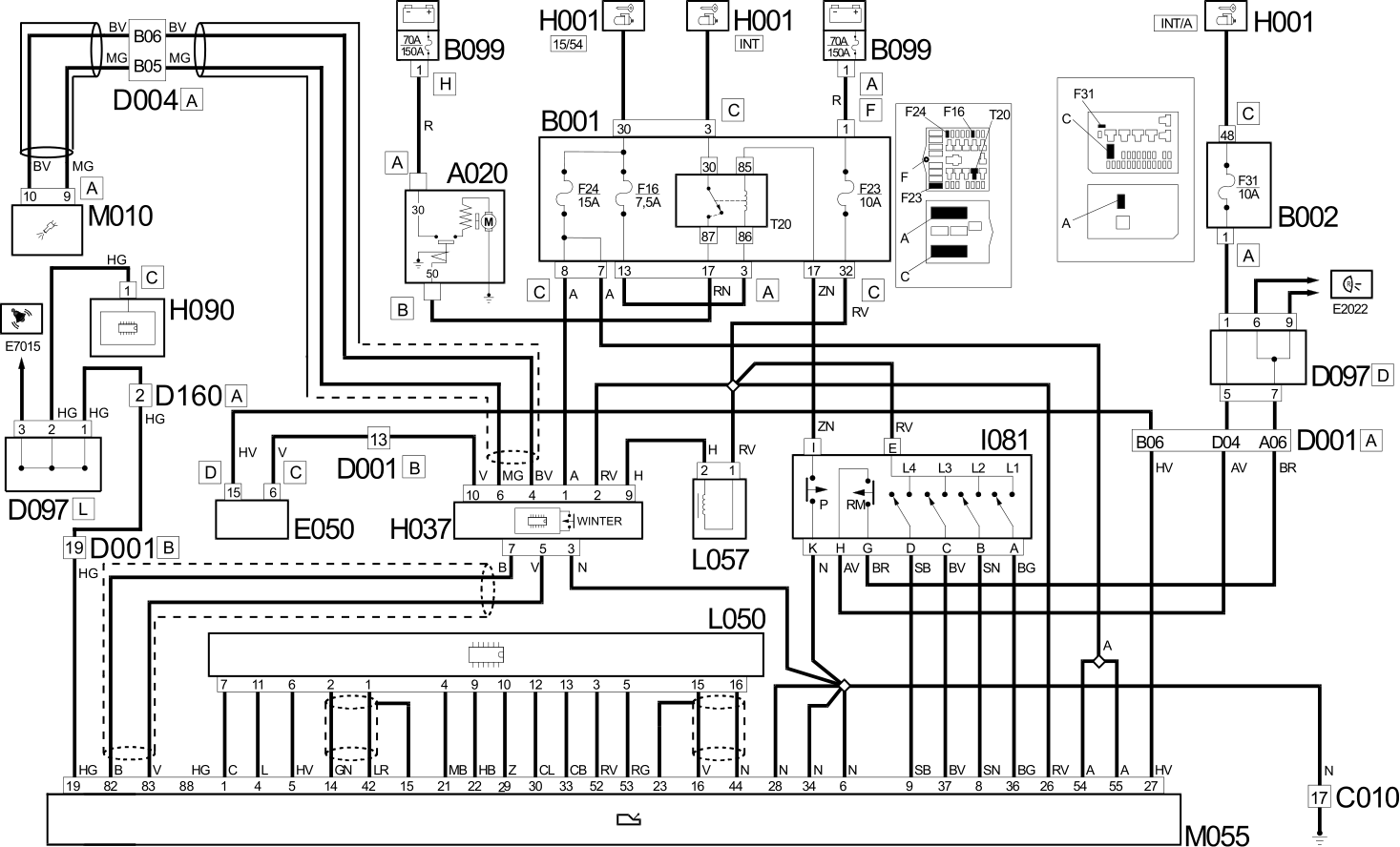

Wiring Diagram
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| A020 | STARTER MOTOR | 5520B |
| B001 | JUNCTION UNIT | 5,505A |
| B002 | JUNCTION UNIT UNDER DASHBOARD | |
| B099 | MAXI FUSE BOX ON BATTERY | |
| C010 | LEFT FRONT EARTH | |
| D001 | FRONT/DASHBOARD COUPLING | |
| D004 | FRONT/ENGINE COUPLING | |
| D018 | ADDITIONAL FRONT/DASHBOARD COUPLING | |
| D097 | SHORT CIRCUITING COUPLING | |
| D186 | FRONT/ABS COUPLING | |
| H001 | IGNITION SWITCH | Op. 5520A IGNITION SWITCH |
| H037 | GEAR CONTROLS | |
| H090 | SWITCH CONTROL PANEL | Op. 5505A MULTI-FUNCTION COMPONENTS |
| E050 | INSTRUMENT PANEL | 5560B |
| L050 | AUTOMATIC TRANSMISSION SOLENOID VALVES | |
| L057 | Ignition switch electro-magnet | |
| M010 | ENGINE MANAGEMENT ECU | |
| M030 |
