Wiring diagrams and electrical functions Asr component location

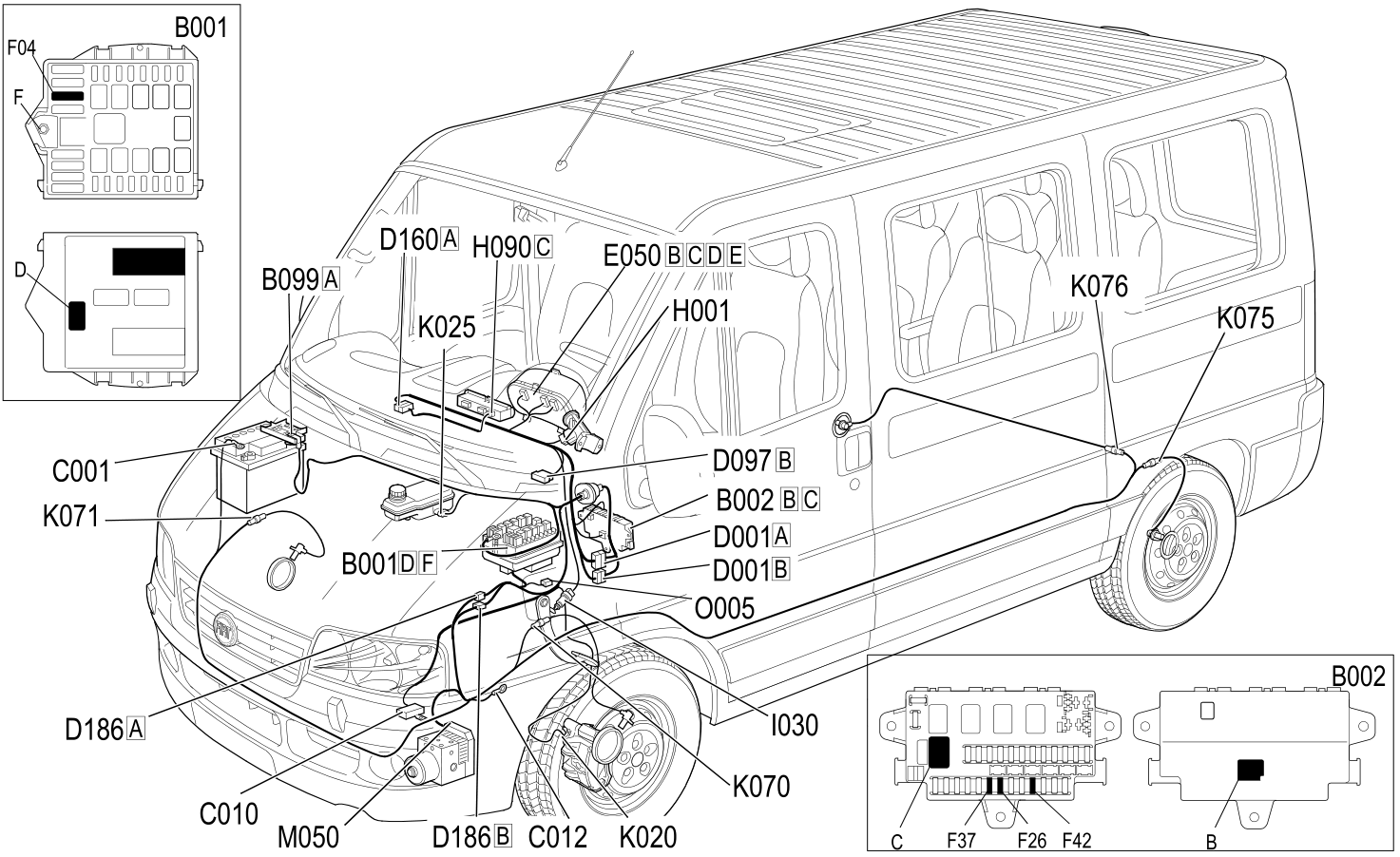

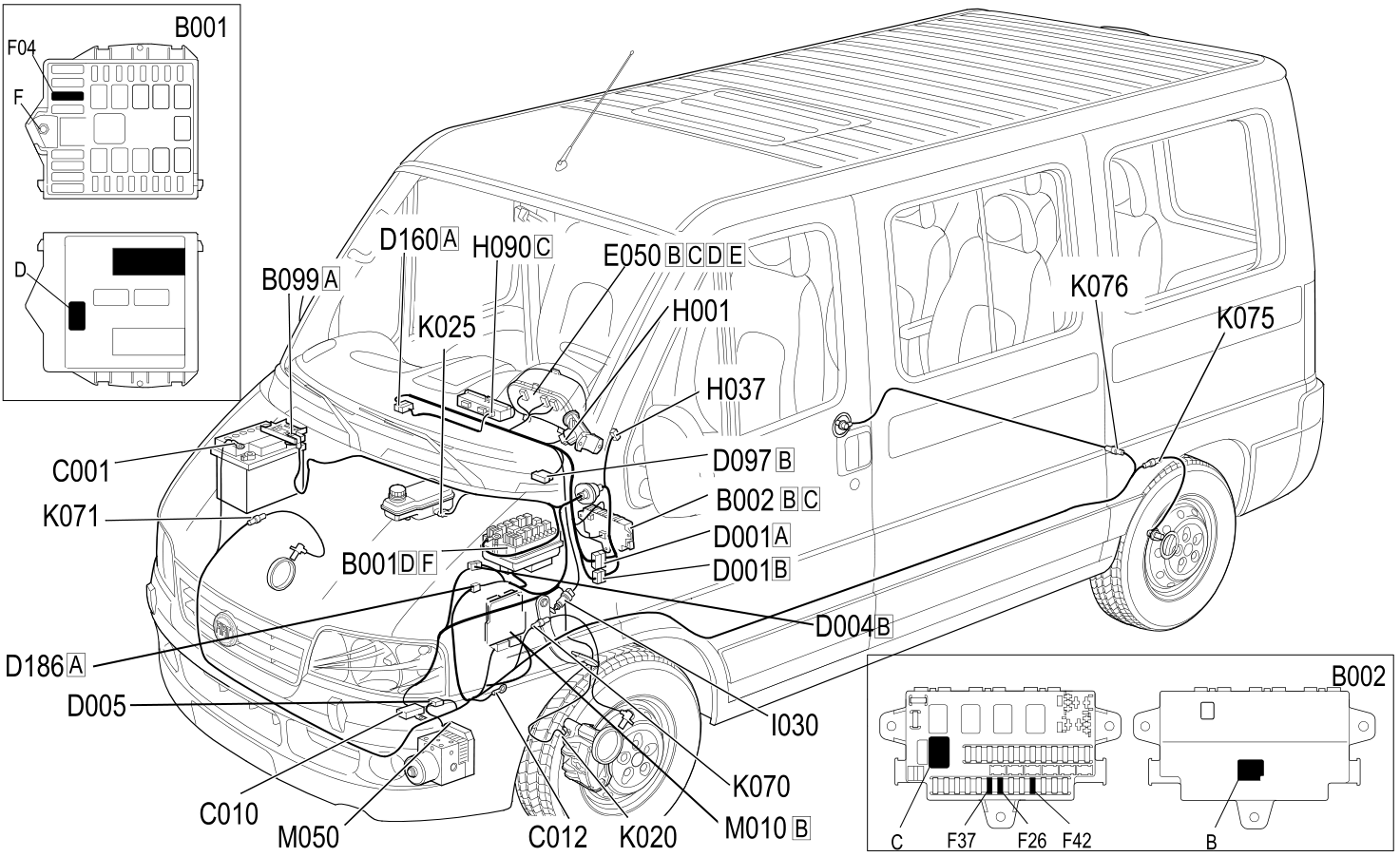

ASR COMPONENT LOCATION
Component code Description Reference to the assembly B001 JUNCTION UNIT 5505A B002 JUNCTION UNIT UNDER DASHBOARD B048 BLINKER FUSE B099 MAXI FUSE BOX ON BATTERY C001 BATTERY EARTH C010 LEFT FRONT EARTH C012 ABS FRONT EARTH D001 FRONT/DASHBOARD COUPLING D097 SHORT CIRCUITING COUPLING D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING D186 FRONT/ABS COUPLING E050 INSTRUMENT PANEL 5560B I030 BRAKE PEDAL SWITCH I031 CLUTCH PEDAL SWITCH 1060G K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH) K025 BRAKE FLUID LEVEL SENSOR (SWITCH) K070 LEFT FRONT WHEEL SENSOR FOR ABS K071 RIGHT FRONT WHEEL SENSOR FOR ABS K075 LEFT REAR WHEEL SENSOR FOR ABS K076 RIGHT REAR WHEEL SENSOR FOR ABS. K081 FUEL TEMPERATURE SENSOR K083 FUEL PRESSURE SENSOR M050 ABS CONTROL UNIT O005 LOAD RESISTANCE ON FRONT CABLE
Component code Description Reference to the assembly B001 JUNCTION UNIT 5505A B002 JUNCTION UNIT UNDER DASHBOARD B099 MAXI FUSE BOX ON BATTERY C001 BATTERY EARTH C010 LEFT FRONT EARTH C012 ABS FRONT EARTH D001 FRONT/DASHBOARD COUPLING D097 SHORT CIRCUITING COUPLING D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING D186 FRONT/ABS COUPLING E050 INSTRUMENT PANEL 5560B H001 IGNITION SWITCH Op. 5520A IGNITION SWITCH H090 SWITCH CONTROL PANEL Op. 5505A MULTI-FUNCTION COMPONENTS I030 BRAKE PEDAL SWITCH K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH) K025 BRAKE FLUID LEVEL SENSOR (SWITCH) K070 LEFT FRONT WHEEL SENSOR FOR ABS K071 RIGHT FRONT WHEEL SENSOR FOR ABS K075 LEFT REAR WHEEL SENSOR FOR ABS K076 RIGHT REAR WHEEL SENSOR FOR ABS. K083 FUEL PRESSURE SENSOR M050 ABS CONTROL UNIT O005 LOAD RESISTANCE ON FRONT CABLE
2.8 JTD 8V · Automatic Transmission
Component location
20 Electrical
