BELT TIMING SYSTEM
CONSTRUCTION SPECIFICATIONS
Direct control, via toothed belt, which drives the pressure pump and water pump in addition to the camshaft.
CONSTRUCTION SPECIFICATIONS

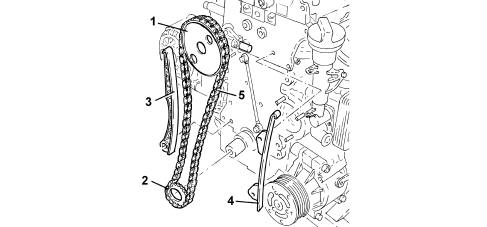

The timing is direct operation by means of a chain.
1 - Driven gear
2 - Drive gear
3 - Moving pad
4 - Fixed pad
5 - Timing chain
