OVERHEAD CAMSHAFT (1) IN CYLINDER HEAD (1)

Description 1036B

1.9 Multijet

CONSTRUCTION SPECIFICATIONS

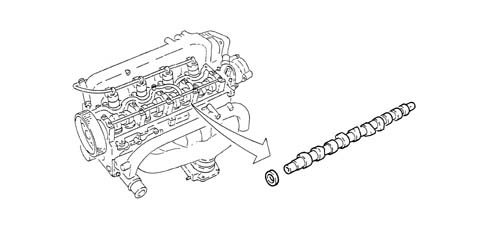

CAMSHAFT

In cast iron, with induction-hardened cams, driven directly by toothed belt.

The camshaft is sealed at the front by an o-ring and at the rear by the vacuum pump gasket.

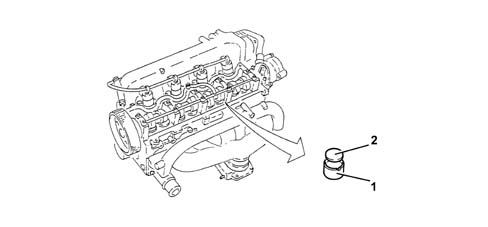

TAPPETS

The mechanical tappets consist of a tappet (1) and a plate (2) in cemented, phosphated steel in contact with the cam and used to adjust valve clearance.
