REVERSING LIGHTS - WIRING DIAGRAM

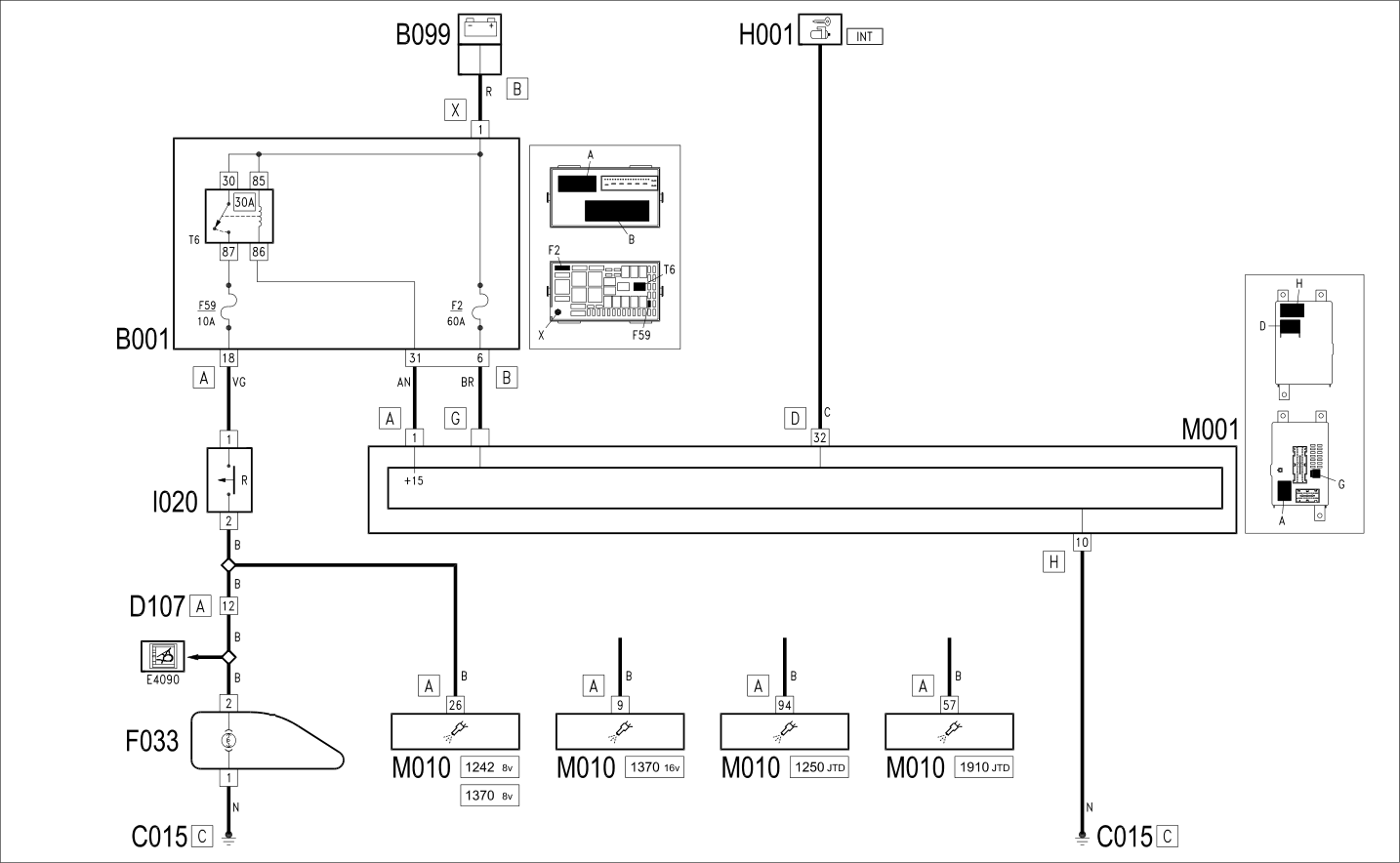

WIRING DIAGRAM

COMPONENTS

B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
D107	DASHBOARD-REAR/ENGINE SERVICES COUPLING
F33	REVERSING LIGHT	Op. 5550D24 REVERSING LIGHT - R+R
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
I020	REVERSING LIGHTS SWITCH	Op. 5550D22 REVERSING LIGHT SWITCH - R+R
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
M010	ENGINE MANAGEMENT ECU	Op. 1056B82 INJECTION/IGNITION SYSTEM E.C.U. (ONE) - R + R Op. 1060G80 DIESEL ELECTRONIC INJECTION CONTROL UNIT - .R
