R.R. REAR BUMPER

Operation 7210E66 · External parts

Removing

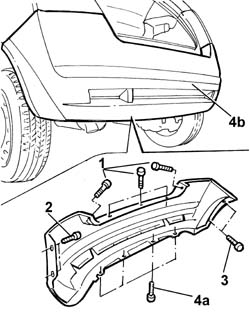

Place the car on a lift.

1. Undo the upper fixing bolts.

Raise the lift halfway.

2. Undo the upper side bolts securing the bumper and wing on both sides.

3. Undo the lower side bolts securing the bumper and wheel arch on both sides.

Raise the lift as far as it will go.

4. Undo lower bolts (4a) and remove bumpers (4b).

S.W.

Removing

Place the car on a ramp.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Disconnect the battery negative terminal.

- 5540A56 dipped/main beam electrical wiring - check component operation, line continuity and repair contacts - includes relay replacement if necessary

Raise the vehicle to halfway.

1. Undo the bolts fixing the rear bumper to the bodyshell.

2. Disconnect the electrical connection for the parking sensor system.

All versions

Refitting

Check that the bumper is undamaged.

If necessary touch up the paintwork.

Position the bumper and tighten the lower bolts.

Lower the lift fully.

Tighten the bolts securing the bumper to rear wheel arch.

Tighten the upper bolts securing bumper to wing on both sides.

Lower the ramp.

Tighten the upper bolts.

Remove the vehicle from the ramp.

S.W.

1. Undo the fixing bolts (1a) and move the left rear wing trim (1b) aside.

Repeat the operation on the right side.

2. Undo the bolts fixing the left rear bumper to the wing.

Repeat the operation on the right side.

1. Undo the bolts fixing the rear bumper on the left hand side to the bodyshell.

Repeat the operation on the right side.

2. Remove the rear bumper.

Refitting

Place the rear bumper in its original position and tighten the bolts fixing it to the bodyshell.

Tighten the bolts fixing the rear bumper to the wing on the left and right sides.

Reposition the rear wing cover and tighten the fixing bolts.

Connect the electrical connection for the parking sensor system.

Tighten the bolts fixing the rear bumper to the bodyshell.

Lower the vehicle.

- 5540A56 dipped/main beam electrical wiring - check component operation, line continuity and repair contacts - includes relay replacement if necessary

Connect the battery negative terminal.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Remove the car from the ramps.
