R.r. rear side door
- Make
- Fiat
- Model
- Stilo Factory Service Manual
- Year
- 2001–2007
- Section
- Removing refitting › R.r. rear side door
Body panels and frameR.r. rear side door
R.R. REAR SIDE DOOR
Lower the front window to the end of its travel.
Removing
- 5530B56 BATTERY DRIP TRAY COVER - R.R.
Disconnect the battery negative terminal.

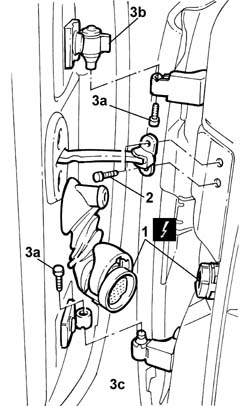

1. Disconnect the door junction
| Name | Connector | |
|---|---|---|
| 1 | Left /rear door. coupling | D35 |
| Name | Connector | |
|---|---|---|
| 1 | Rear/right door coupling right | D36 |
2. Undo the limiter retaining bolts, body side.
3. Undo bollts (3a) securing upper hinge (3b) and lower hinge (3c).
With the aid of a second operator, disconnect the door and remove, then place on a suitable stand.
Refitting
Check the door is undamaged.
If necessary touch up the paintwork.
Fit the door and tighten the door hinge retaining bolts to torque.
| Fastening | Component | Ø | Value (daNm) | |
|---|---|---|---|---|
| Bolt | REAR SIDE DOOR HINGES | M6 | 1.5 |
Screw in the door limiter bolts, body side, and tighten to torque.
Connect the door junction.
| Name | Connector | |
|---|---|---|
| Left /rear door. coupling | D35 |
| Name | Connector | |
|---|---|---|
| Rear/right door coupling right | D36 |
Connect the battery negative terminal.
