INSTRUMENT PANEL - Wiring diagram

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Instrument panel › INSTRUMENT PANEL - Wiring diagram

Wiring diagrams and electrical functionsINSTRUMENT PANEL - Wiring diagram

INSTRUMENT PANEL - Wiring diagram

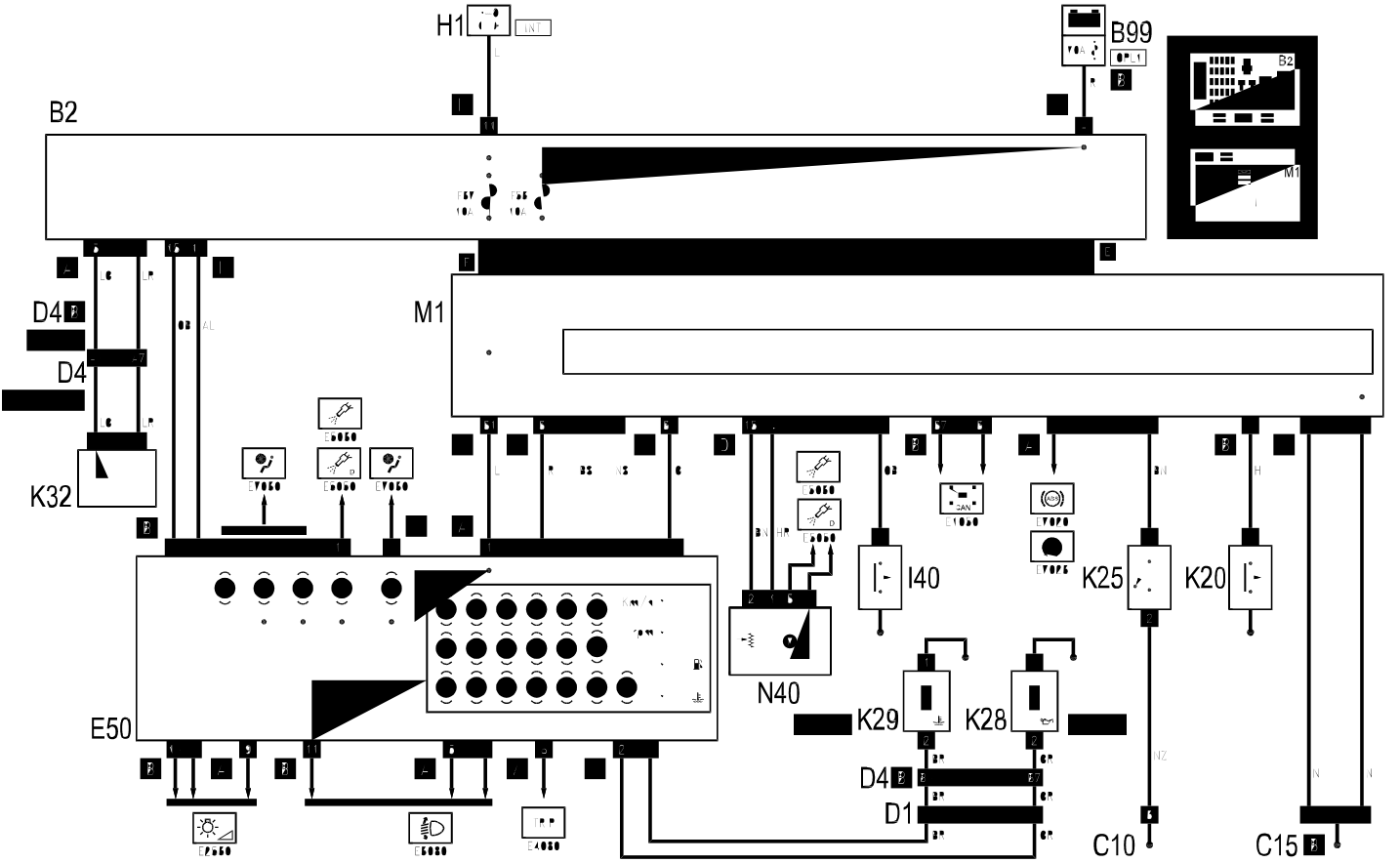

Wiring diagram

COMPONENTS

Component code	Name	Assembly reference
B2	Junction unit under dashboard	5505A
B99	Maxifuse box on battery	5530B
C10	Front left earth
C15	Facia earth, driver's side
D1	Front / dashboard coupling
D1	Front/dashboard coupling
D4	Front/engine connection
D4	Front/engine coupling
E50	Instrument panel	5560B
H1	Ignition switch	5520A
I40	Handbrake switch
K20	Left brake pad wear sensor (switch)	3310A
K25	Brake fluid level sensor (switch)	3330C
K28	Engine oil pressure sensor
K29	Engine oil temperature sensor	1084A
K32	Engine oil level sensor
K32	Engine oil level sensor	1084A
M1	Body computer	5505A
M50	ABS control unit	3340A
N40	Fuel level gauge
N40	Fuel pump and sender unit	1040A
N40	Fuel pump and sender unit	1040A
N40	Fuel pump and sender unit	1040A
