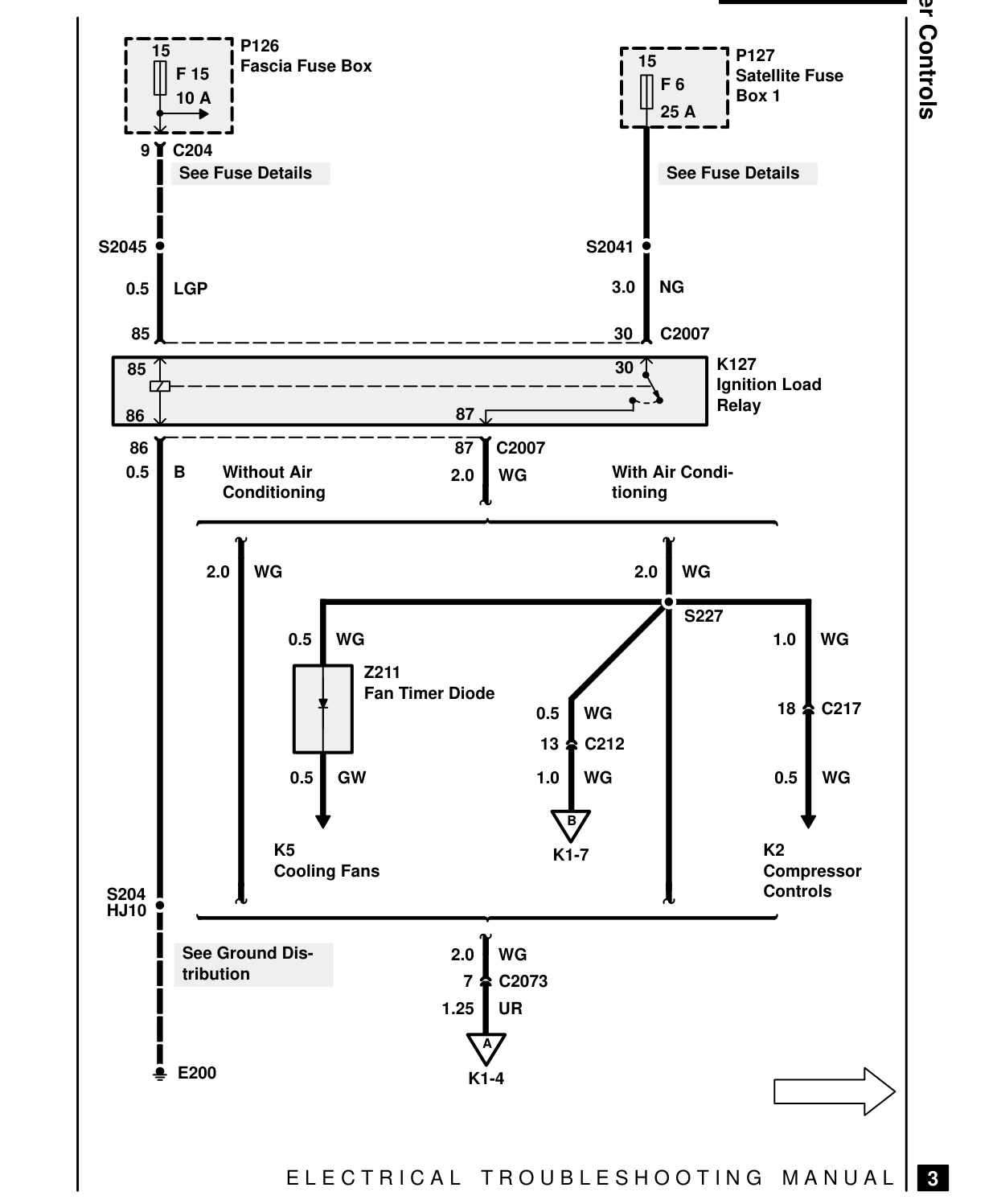

Blower controls – circuit diagram

BLOWER CONTROLS – CIRCUIT DIAGRAM

P126 15 Fascia Fuse Box F 15 10 A

9 C204 See Fuse Details

S2045

0.5 LGP

85

85

87 86 86 87 0.5 B Without Air 2.0 Conditioning

2.0 WG

0.5 WG

Z211 Fan Timer Diode

0.5 GW

K5 Cooling Fans S204 HJ10

See Ground Dis- 2.0 tribution 7 1.25

E200 K1-4

E L E C T R I C A L

Blower Controls P127 15 Satellite Fuse F 6 Box 1 25 A

See Fuse Details

S2041

3.0 NG

30 C2007 K127 30 Ignition Load Relay

C2007 With Air Condi- WG tioning

2.0 WG

S227 1.0 WG

18 C217 0.5 WG 13 C212

1.0 WG 0.5 WG

B

K2 K1-7 Compressor Controls

WG C2073 UR

A
