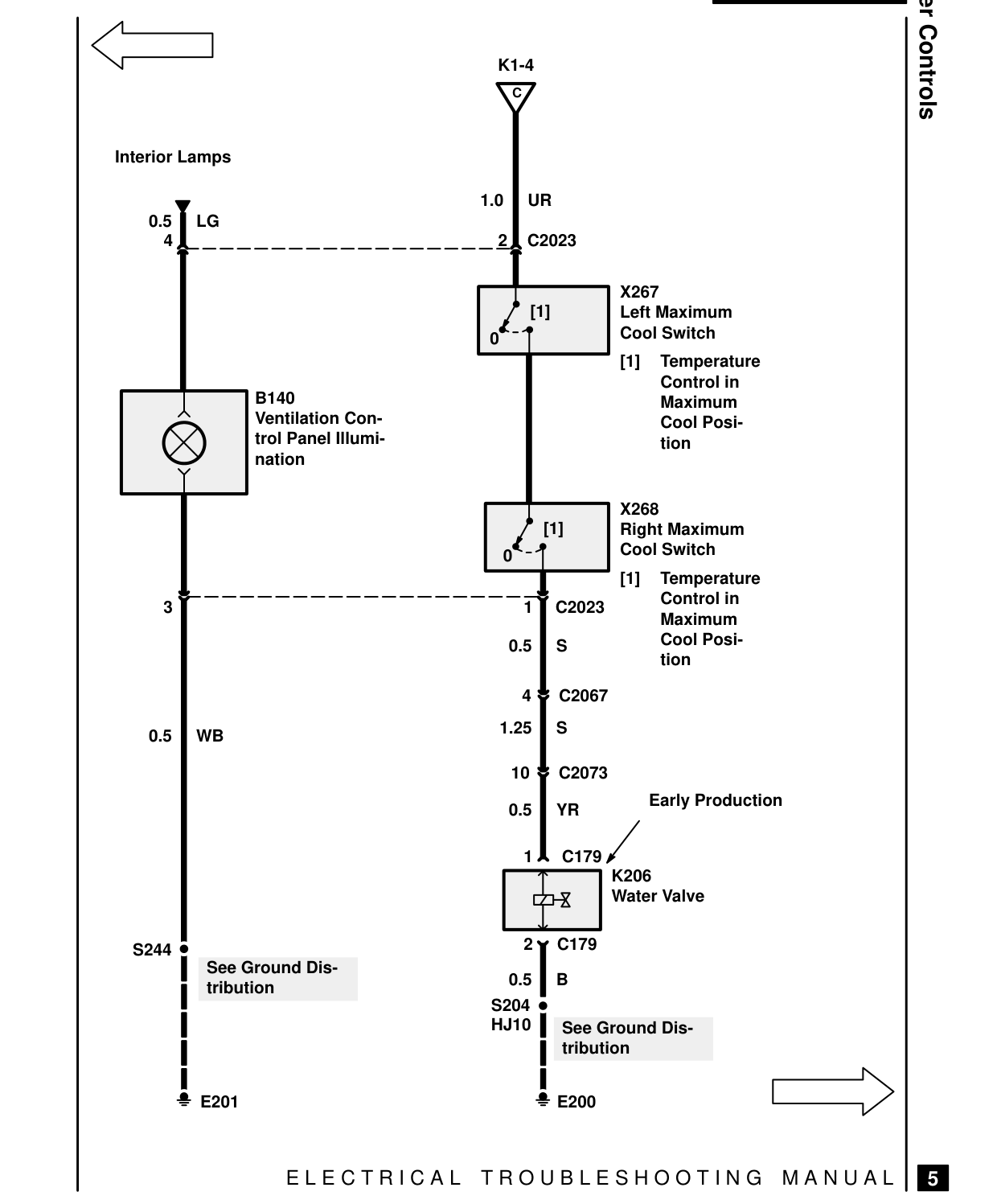

Blower controls – circuit diagram

BLOWER CONTROLS – CIRCUIT DIAGRAM

Interior Lamps

0.5 LG 4

B140 Ventilation Con- trol Panel Illumi- nation

3

0.5 WB

S244 See Ground Dis- tribution

E201

E L E C T R I C A L

Blower Controls K1-4 C

1.0 UR

2 C2023

X267 [1] Left Maximum Cool Switch 0 [1] Temperature Control in Maximum Cool Posi- tion

X268 [1] Right Maximum Cool Switch 0 [1] Temperature Control in 1 C2023 Maximum Cool Posi- 0.5 S tion

4 C2067 1.25 S

10 C2073 Early Production 0.5 YR

1 C179 K206 Water Valve

2 C179

0.5 B S204 HJ10 See Ground Dis- tribution

E200

T R O U B L E S H O O T I N G M A N U A L

5
