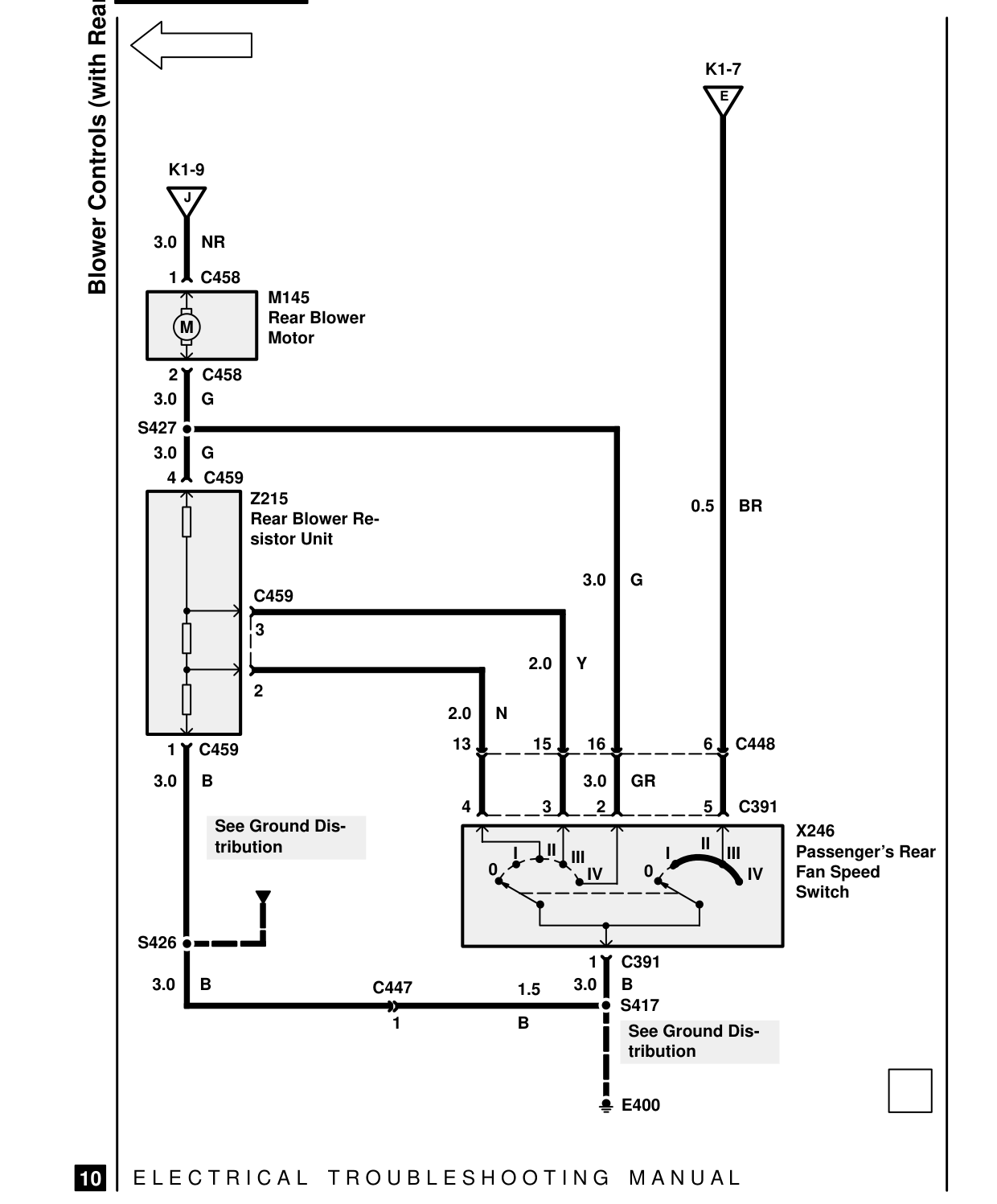

Blower controls – circuit diagram

BLOWER CONTROLS – CIRCUIT DIAGRAM

Blower Controls (with Rear A/C) K1-9 J

3.0 NR

1 C458 M145 Rear Blower M Motor

2 C458 3.0 G S427 3.0 G 4 C459 Z215 Rear Blower Re- sistor Unit

C459

3

2 2.0 13 1 C459 3.0 B 4 See Ground Dis- tribution

S426

3.0 B C447

1

E L E C T R I C A L T R O U B L E S H O O T I N G

10

K1-7 E

0.5 BR

3.0 G

2.0 Y

N 15 16 6 C448

3.0 GR 3 2 5 C391 X246 II II Passenger’s Rear I I III III 0 0 Fan Speed IV IV Switch

1 C391 3.0 B 1.5 S417 B See Ground Dis- tribution

E400
