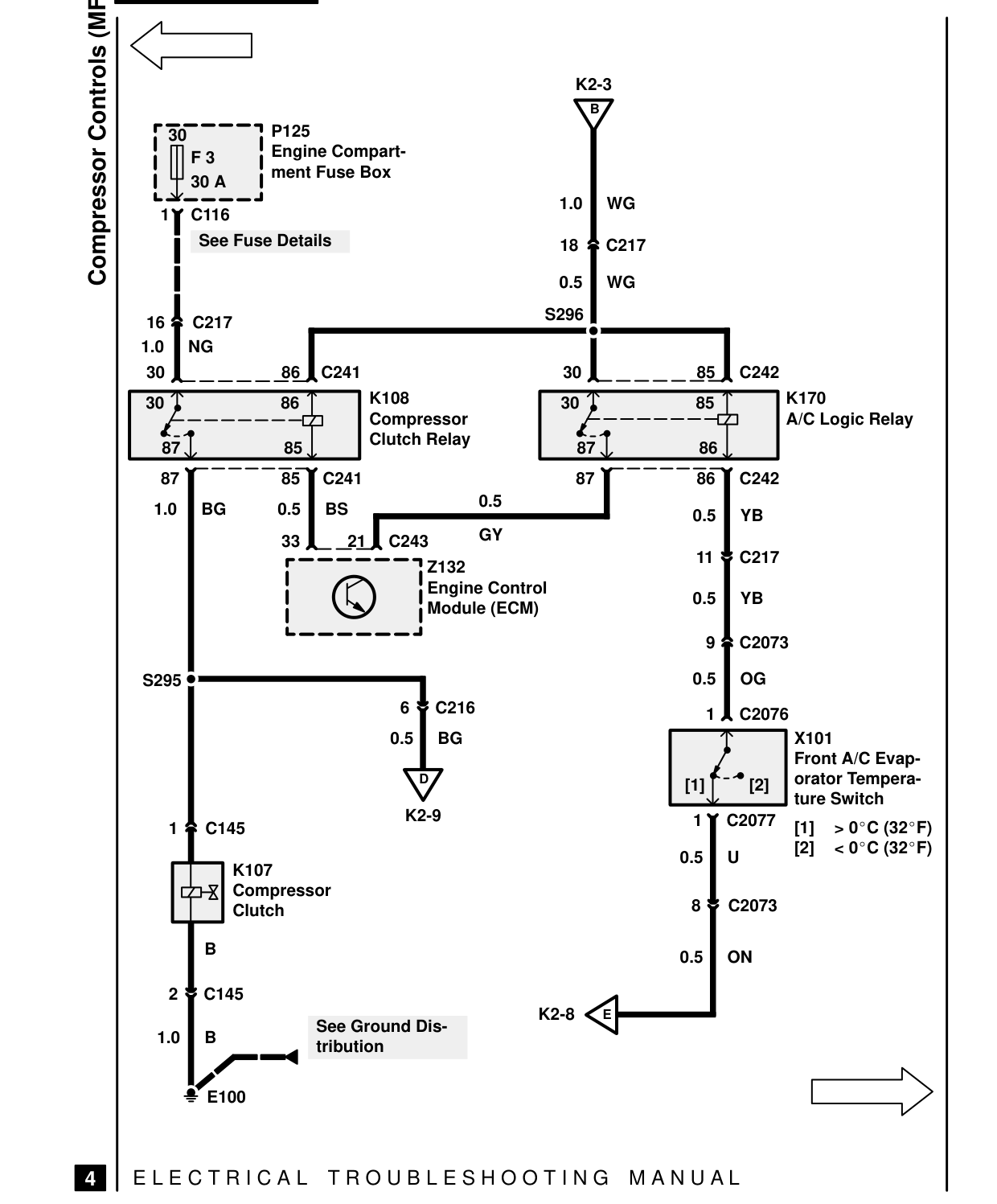

Compressor controls – circuit diagram

COMPRESSOR CONTROLS – CIRCUIT DIAGRAM

Compressor Controls (MFI-V8) P125 30 Engine Compart- F 3 ment Fuse Box 30 A 1 C116 See Fuse Details

16 C217 1.0 NG 30 86 C241 K108 86 30 Compressor Clutch Relay 85 87 87 85 C241 1.0 BG 0.5 BS 33 21 C243 Z132 Engine Control Module (ECM)

S295 6 C216 0.5 BG

D

K2-9 1 C145

K107 Compressor Clutch

B

2 C145 See Ground Dis- 1.0 B tribution

E100

E L E C T R I C A L T R O U B L E S H O O T I N G

4

K2-3 B

1.0 WG

18 C217

0.5 WG S296

30 85 C242 K170 85 30 A/C Logic Relay 86 87 87 86 C242 0.5 0.5 YB GY 11 C217

0.5 YB

9 C2073

0.5 OG

1 C2076 X101 Front A/C Evap- orator Tempera- [1] [2] ture Switch 1 C2077 [1]

> 0
C (32
F)

[2]

< 0
C (32
F)

0.5 U

8 C2073

0.5 ON

K2-8 E
