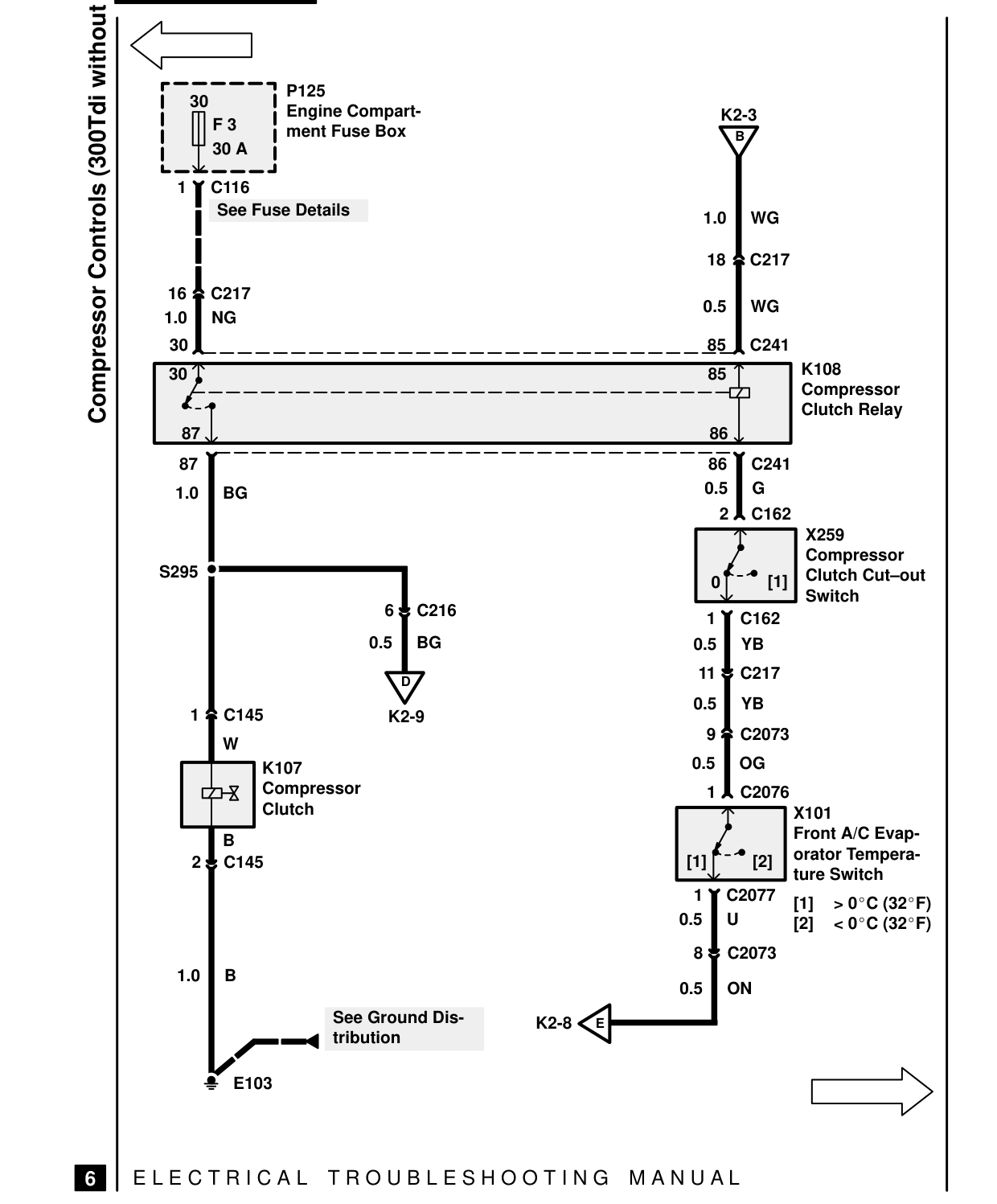

Compressor controls – circuit diagram

COMPRESSOR CONTROLS – CIRCUIT DIAGRAM

Compressor Controls (300Tdi without EDC) P125 30 Engine Compart- F 3 ment Fuse Box 30 A

1 C116 See Fuse Details

16 C217 1.0 NG 30 30

87 87 1.0 BG

S295

6 C216 0.5 BG

D

1 C145 K2-9 W K107 Compressor Clutch B 2 C145

1.0 B

See Ground Dis- tribution

E103

E L E C T R I C A L T R O U B L E S H O O T I N G

6

K2-3 B

1.0 WG

18 C217

0.5 WG

85 C241 K108 85 Compressor Clutch Relay 86 86 C241 0.5 G 2 C162 X259 Compressor Clutch Cut-out [1] 0 Switch 1 C162 0.5 YB 11 C217 0.5 YB 9 C2073 0.5 OG 1 C2076 X101 Front A/C Evap- orator Tempera- [1] [2] ture Switch 1 C2077 [1]

> 0
C (32
F)

0.5 U [2]

< 0
C (32
F)

8 C2073

0.5 ON

K2-8 E

M A N U A L
