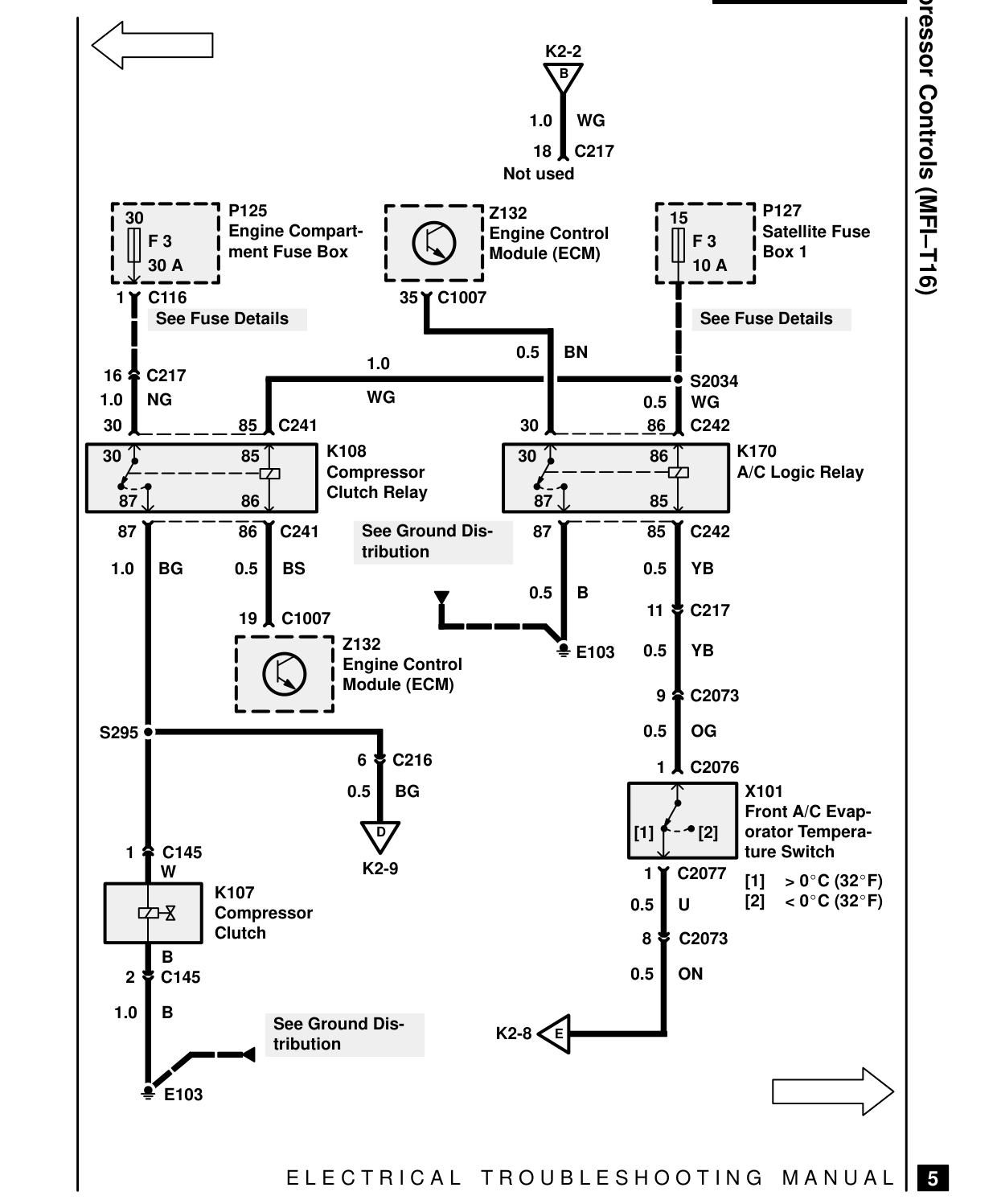

Compressor controls – circuit diagram

COMPRESSOR CONTROLS – CIRCUIT DIAGRAM

P125 30 Engine Compart- F 3 ment Fuse Box 30 A 1 C116 35 C1007 See Fuse Details

1.0 16 C217 WG 1.0 NG 30 85 C241 K108 85 30 Compressor Clutch Relay 86 87 See Ground Dis- 87 86 C241 tribution 1.0 BG 0.5 BS

19 C1007 Z132 Engine Control Module (ECM)

S295 6 C216 0.5 BG

D 1 C145 K2-9 W K107 Compressor Clutch B 2 C145

1.0 B See Ground Dis- tribution

E103

E L E C T R I C A L

Compressor Controls (MFI-T16) K2-2 B

1.0 WG 18 C217 Not used

P127 Z132 15 Satellite Fuse Engine Control F 3 Box 1 Module (ECM) 10 A

See Fuse Details

0.5 BN S2034 0.5 WG 30 86 C242 K170 86 30 A/C Logic Relay 85 87 87 85 C242

0.5 YB 0.5 B 11 C217

0.5 YB E103

9 C2073

0.5 OG

1 C2076 X101 Front A/C Evap- orator Tempera- [1] [2] ture Switch 1 C2077 [1]

> 0
C (32
F)

[2]

< 0
C (32
F)

0.5 U

8 C2073

0.5 ON

K2-8 E
