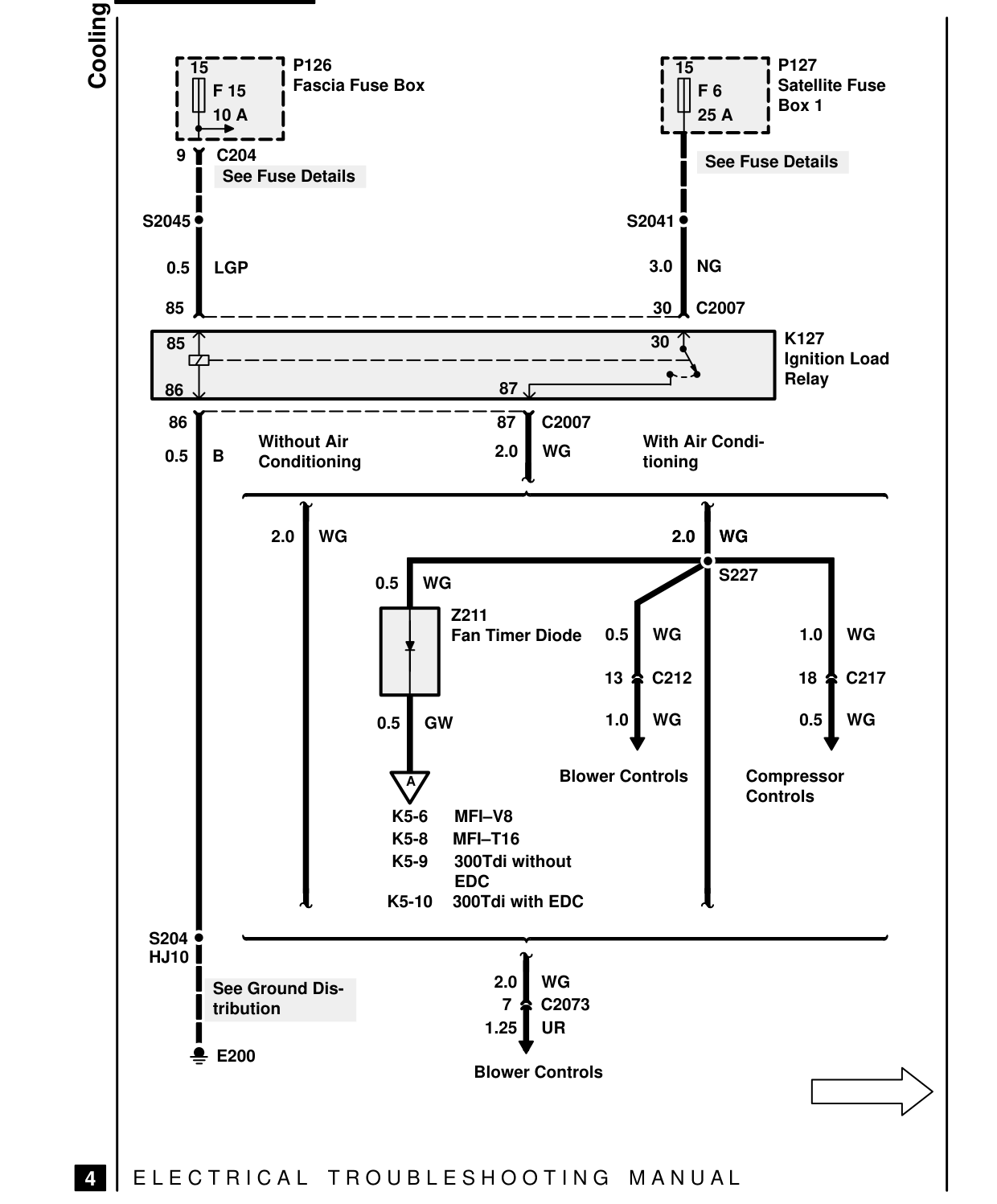

Cooling fans – circuit diagram

COOLING FANS – CIRCUIT DIAGRAM

Cooling Fans P126 15 Fascia Fuse Box F 15 10 A

9 C204 See Fuse Details

S2045

0.5 LGP

85

85

86 86 Without Air 0.5 B Conditioning

2.0 WG

0.5 WG

0.5 GW

A

K5-6 K5-8 K5-9

K5-10

S204 HJ10 See Ground Dis- tribution

E200

E L E C T R I C A L T R O U B L E S H O O T I N G

4

P127 15 Satellite Fuse F 6 Box 1 25 A

See Fuse Details

S2041

3.0 NG

30 C2007 K127 30 Ignition Load Relay 87

C2007 87 With Air Condi- 2.0 WG tioning

2.0 2.0 WG WG

S227

Z211 0.5 WG 1.0 WG Fan Timer Diode

13 C212 18 C217

1.0 WG 0.5 WG

Blower Controls Compressor Controls MFI-V8 MFI-T16 300Tdi without EDC 300Tdi with EDC

2.0 WG 7 C2073 1.25 UR

Blower Controls
