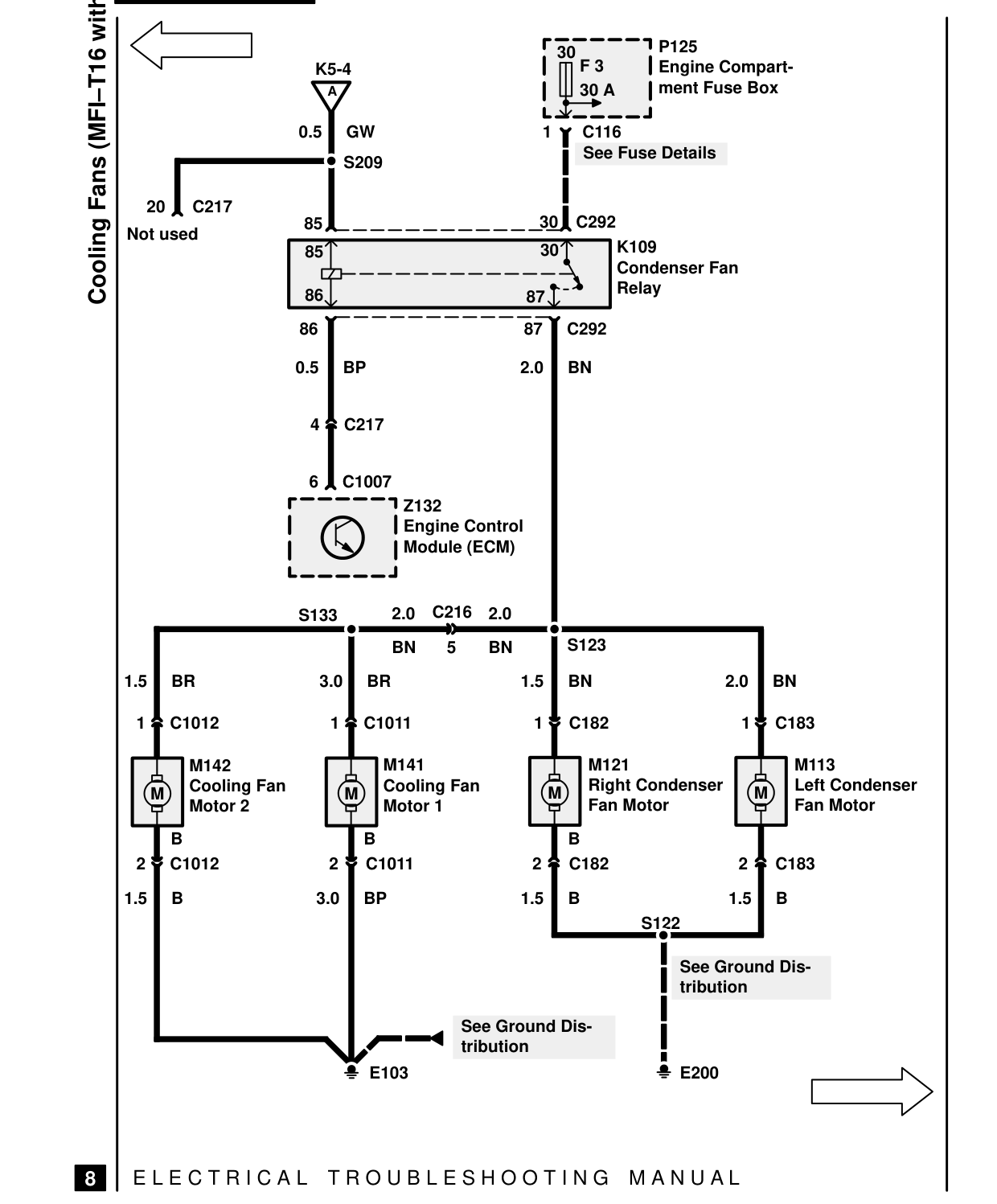

Cooling fans – circuit diagram

COOLING FANS – CIRCUIT DIAGRAM

Cooling Fans (MFI-T16 with A/C) K5-4 A

0.5 GW S209

20 C217 85 Not used 85

86

86

0.5 BP

4 C217

6 C1007 Z132 Engine Control Module (ECM)

C216 2.0 S133 BN 5

1.5 BR 3.0 BR

1 C1012 1 C1011

M141 M142 Cooling Fan Cooling Fan M M Motor 1 Motor 2 B B 2 C1012 2 C1011

1.5 B 3.0 BP

E103

E L E C T R I C A L T R O U B L E S H O O T I N G

8

P125 30 F 3 Engine Compart- ment Fuse Box 30 A

1 C116 See Fuse Details

30 C292 K109 30 Condenser Fan Relay 87 87 C292

2.0 BN

2.0 S123 BN

1.5 BN 2.0 BN

1 C182 1 C183

M121 M113 Right Condenser Left Condenser M M Fan Motor Fan Motor

B 2 C183 2 C182

1.5 B 1.5 B S122

See Ground Dis- tribution

See Ground Dis- tribution E200

M A N U A L
