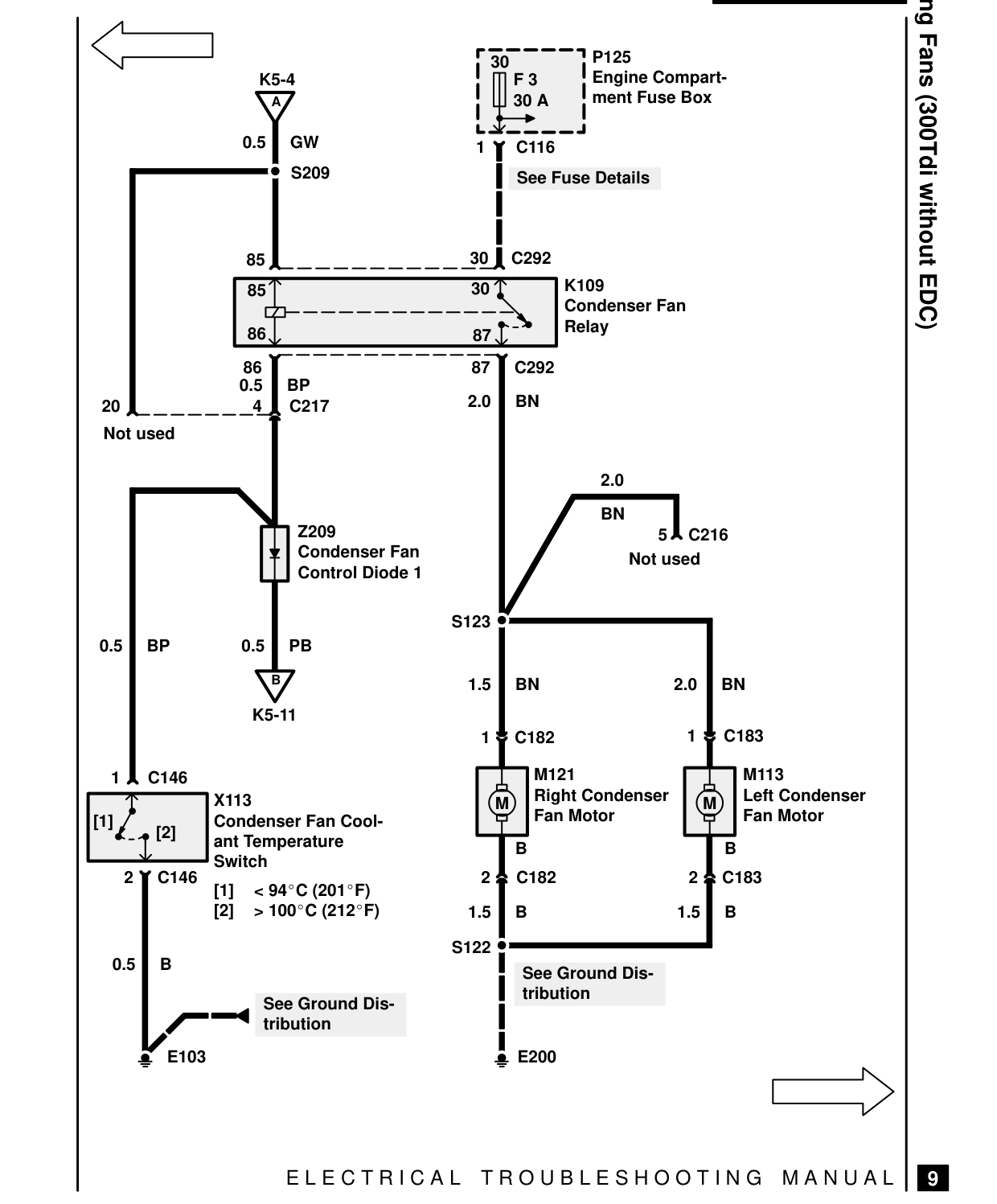

Cooling fans – circuit diagram

COOLING FANS – CIRCUIT DIAGRAM

K5-4 A

0.5 GW S209

30 85 30 85

86

86 87 0.5 BP 2.0 20 4 C217 Not used

Z209 Condenser Fan Control Diode 1

S123 0.5 BP 0.5 PB

B 1.5 K5-11

1 C146 X113 Condenser Fan Cool- [1] [2] ant Temperature Switch 2 C146 [1]

< 94
C (201
F)

[2]

> 100
C (212
F)

1.5

S122 0.5 B

See Ground Dis- tribution E103

E L E C T R I C A L

Cooling Fans (300Tdi without EDC) P125 30 Engine Compart- F 3 ment Fuse Box 30 A

1 C116 See Fuse Details

C292 K109 Condenser Fan Relay 87 C292

BN

2.0

BN 5 C216 Not used

BN 2.0 BN

1 C183 1 C182

M121 M113 Right Condenser Left Condenser M M Fan Motor Fan Motor

B B 2 C182 2 C183

B 1.5 B

See Ground Dis- tribution

E200
