Radio (except Japan) – fault diagnosis

RADIO (EXCEPT JAPAN) – FAULT DIAGNOSIS

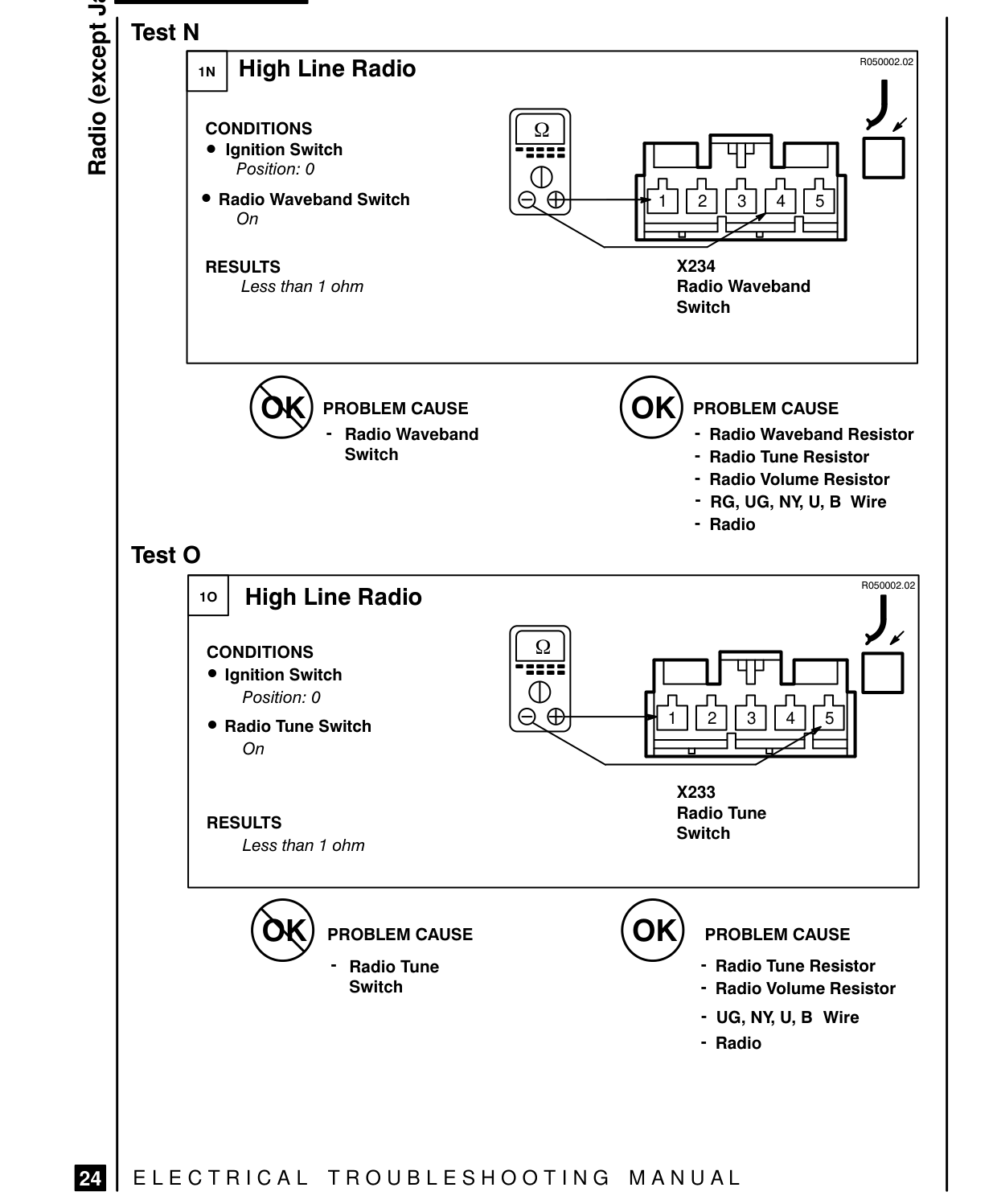

Test N

High Line Radio Py CONDITIONS ® Ignition Switch oc Position: 0 ® Radio Waveband Switch or RESULTS Less than 1 ohm

(5) PROBLEM CAUSE Radio Waveband Switch

Test O

High Line Radio CONDITIONS ® Ignition Switch Position: 0 ® Radio Tune Switch sion:

RESULTS Less than 1 ohm

(5) PROBLEM CAUSE Radio Tune Switch

EZ}| ELECTRICAL TROUBLESHOOTING MANUAL

rosmoz02

gn dD Igy [2] [5] 4 [5]

X234 Radio Waveband Switch

PROBLEM CAUSE - Radio Waveband Resistor - Radio Tune Resistor - Radio Volume Resistor

- RG, UG, NY, U, B Wire - Radio

R050002.02 J z Tss== DO NC (251 [415]

X233 gad Tune

PROBLEM CAUSE - Radio Tune Resistor - Radio Volume Resistor

- UG, NY, U, B Wire

- Radio
