Radio (except Japan) – fault diagnosis

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Fault diagnosis › Radio (except Japan) – fault diagnosis

Radio (EXCEPT Japan)Radio (except Japan) – fault diagnosis

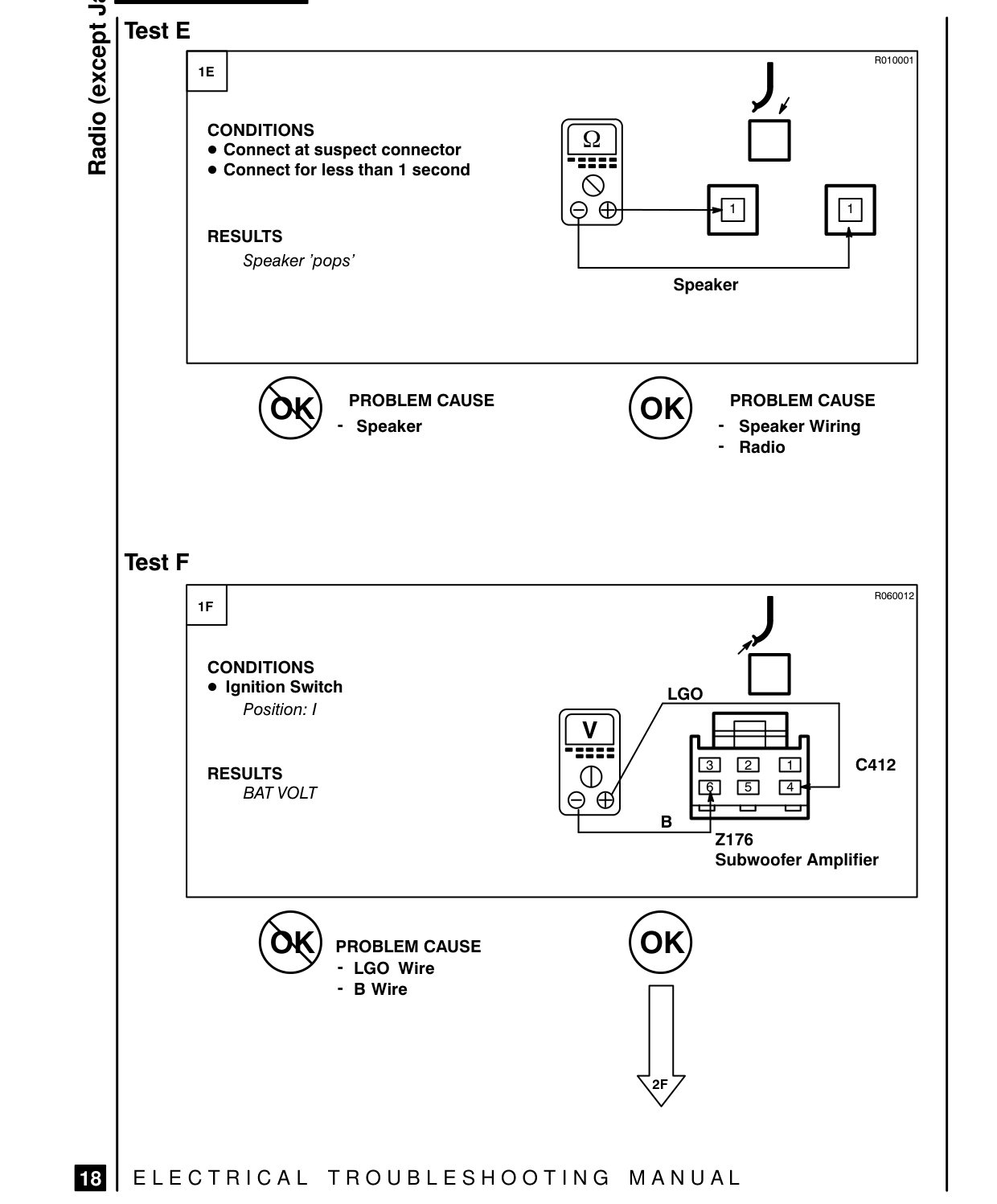

RADIO (EXCEPT JAPAN) – FAULT DIAGNOSIS

2 |Test E

2 p CONDITIONS e Connect at suspect connector oc e Connect for less than 1 second

RESULTS

Speaker ‘pops’

PROBLEM CAUSE

Speaker

Test F ir | CONDITIONS e Ignition Switch Position:

RESULTS BAT VOLT

(5) PROBLEM CAUSE - LGO Wire - B Wire

BB}| ELECTRICAL TROUBLESHOOTING MANUAL

R010001

LJ

Speaker

PROBLEM CAUSE

Speaker Wiring Radio

R060012

LGO

11 LJ OD C412 od

2176 Subwoofer Amplifier

13 Electrical
