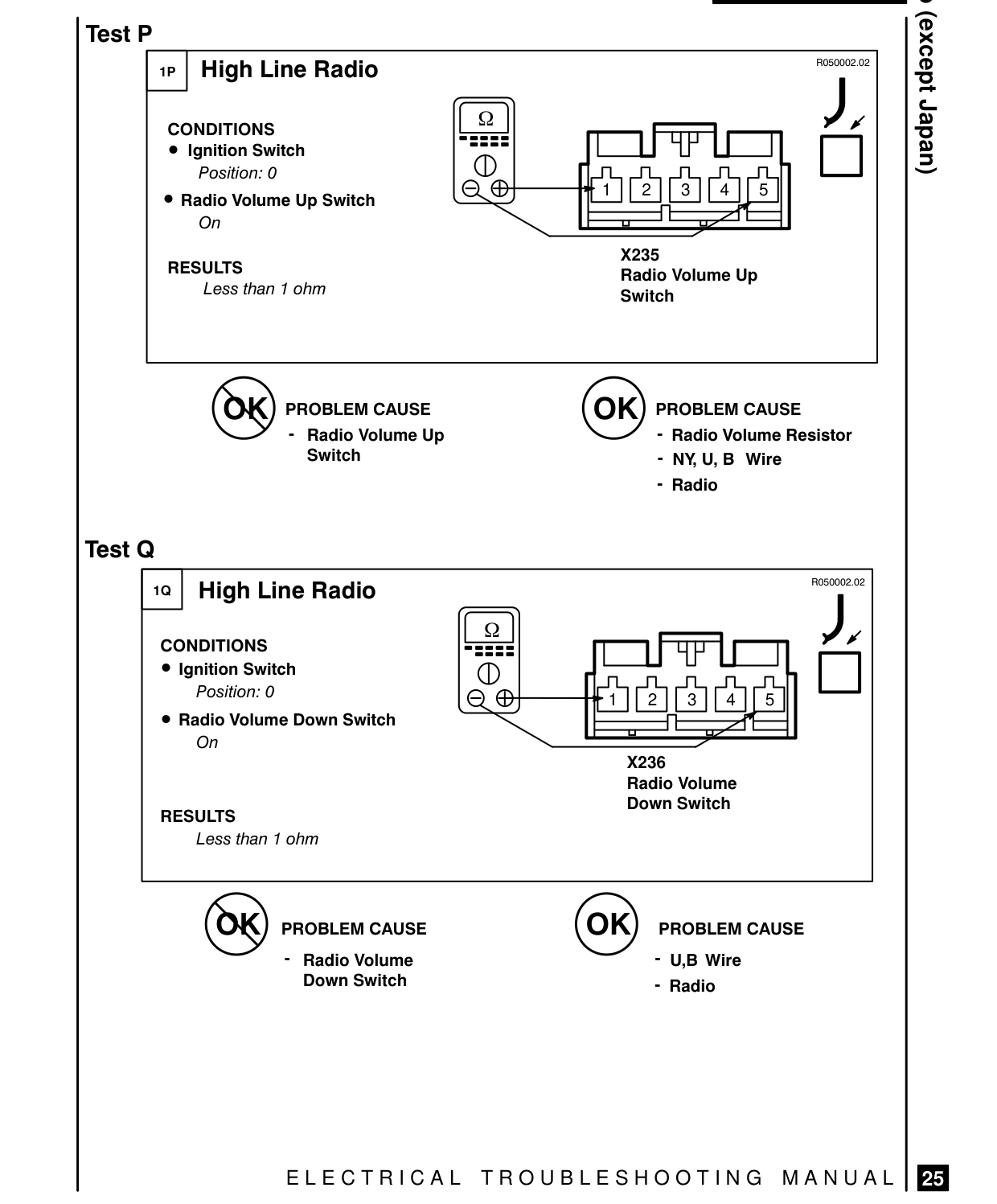

Test P ie | High Line Radio CONDITIONS ® Ignition Switch oy © Radio Volume Up Switch Position: 0 QO on

RESULTS Less than 1 ohm

(59) PROBLEM CAUSE Radio Volume Up Switch

Test Q

High Line Radio CONDITIONS ® Ignition Switch Position: 0 ® Radio Volume Down Switch On

RESULTS

Less than 1 ohm

(59) PROBLEM CAUSE Radio Volume Down Switch

ELECTRICAL TROUBLESHOOTING MANUAL

Oo

R050002.02

[2] [3] [4] jE J 5] ff — X235 Radio Volume Up Switch

PROBLEM CAUSE - Radio Volume Resistor - NY, U,B Wire - Radio

Or] aD Idy [2] [5] [4] 5] EE === X236 Radio Volume Down Switch

PROBLEM CAUSE - U,B Wire - Radio
