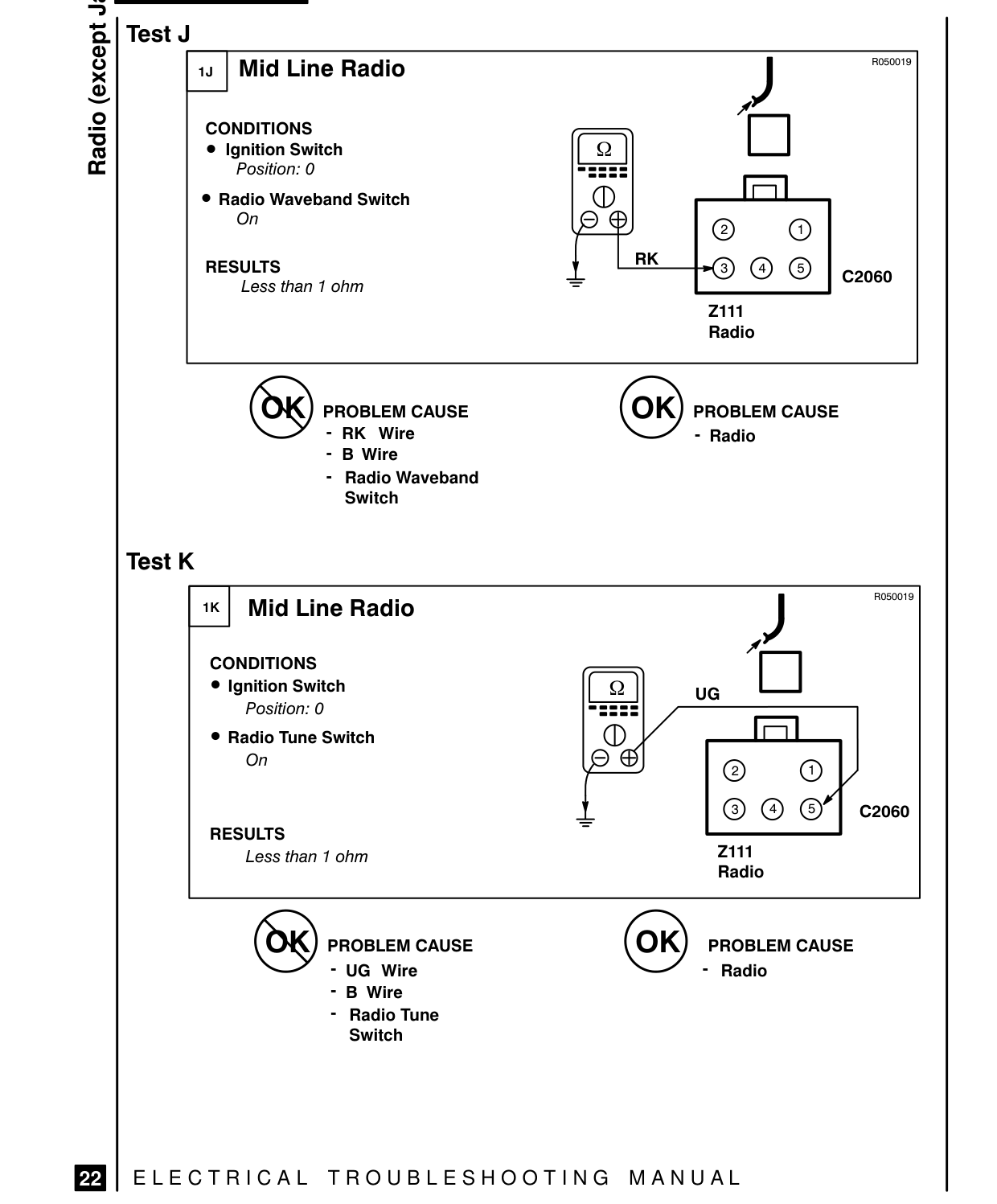

Radio (except Japan) – fault diagnosis

RADIO (EXCEPT JAPAN) – FAULT DIAGNOSIS

a Test J Mid Line Radio

CONDITIONS ® Ignition Switch 0c Position: 0 e Radio Waveband Switch On RESULTS Less than 1 ohm

(5) PROBLEM CAUSE - RK Wire - B Wire

Radio Waveband Switch

Test K

Mid Line Radio CONDITIONS ® Ignition Switch Position: 0 e Radio Tune Switch

RESULTS Less than 1 ohm

(5) PROBLEM CAUSE - UG Wire - B Wire

Radio Tune Switch

EJ| ELECTRICAL TROUBLESHOOTING MANUAL

Posen

> PD RK ® @ © | c2060 Z111 Radio

PROBLEM CAUSE - Radio

R050019

UG =aaa= aD

©O7| cao0e0

21M Radio

PROBLEM CAUSE Radio
