Air Bag - Passenger Fascia Deployment Repair - Off Vehicle (Page 1092)
RESTRAINT SYSTEMS
75-28
REPAIRS

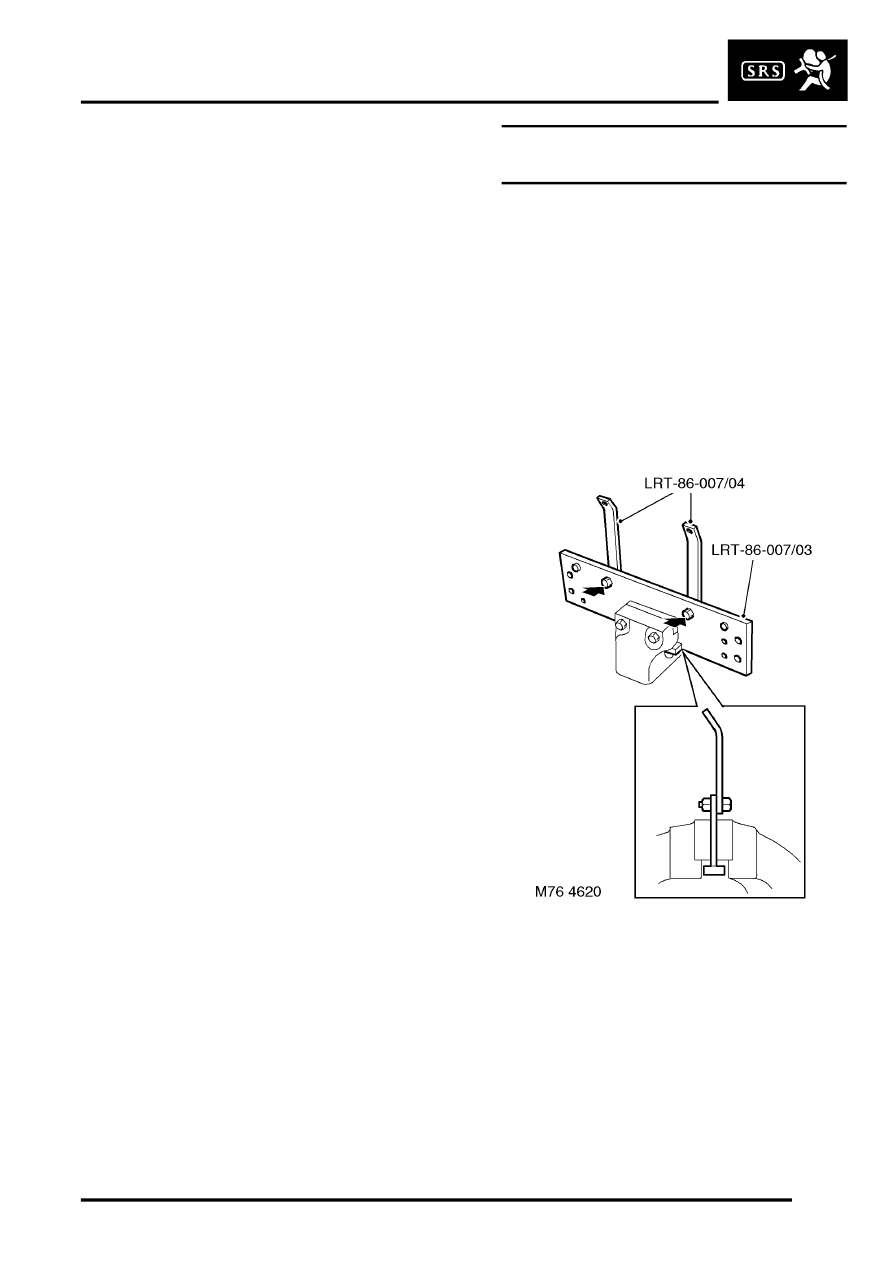

4. Fit and secure air bag to LRT-86-007/04.

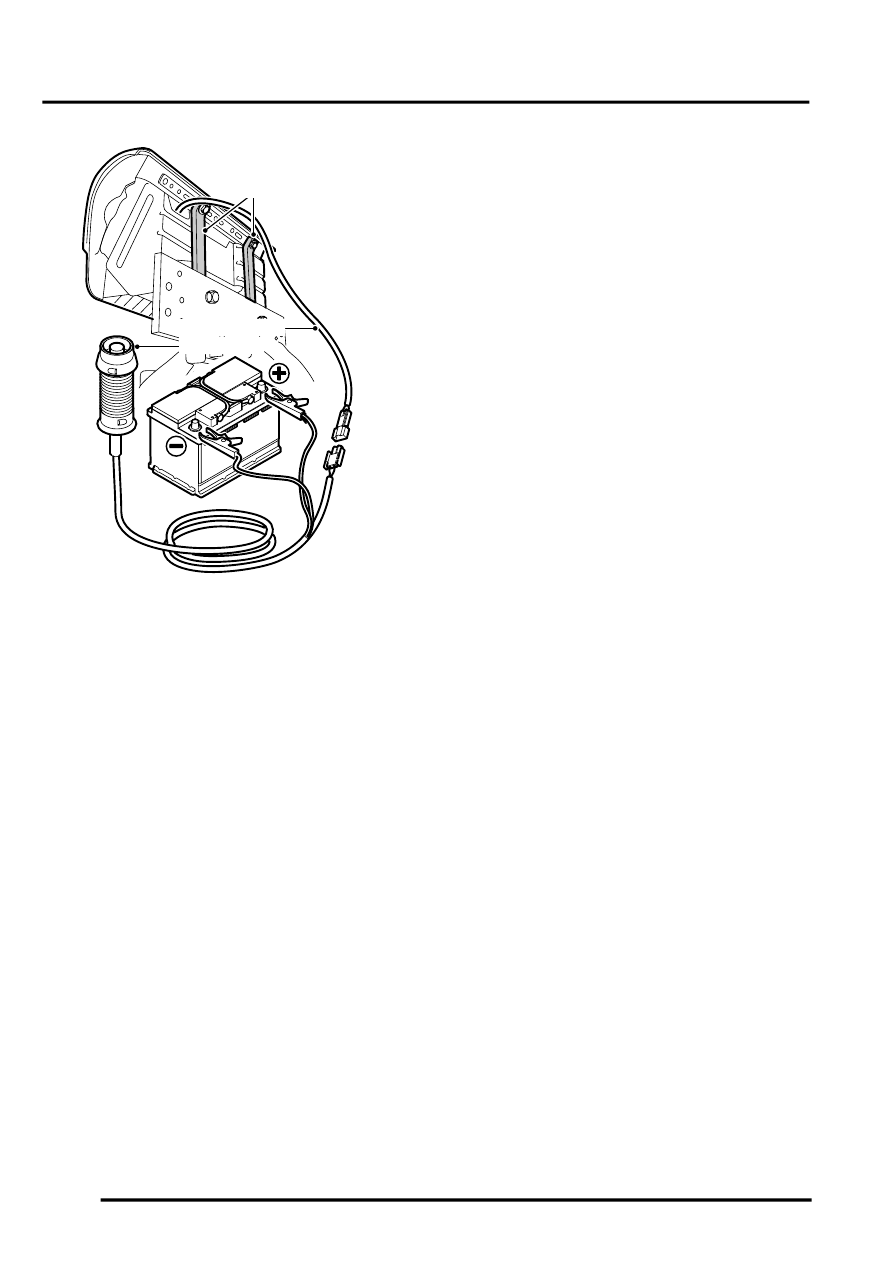

5. Connect deployment tool fly lead LRT-86-003/
08 to air bag.
6. Connect deployment tool LRT-86-003 to
deployment tool fly lead LRT-86-003/08.
7. Connect deployment tool LRT-86-003 to
battery.
WARNING: Ensure all personnel are at least
15 metres (50 feet) away from the air bag
module.
8. Press deployment tool operating button to
deploy air bag module.
9. Disconnect deployment tool from battery.
WARNING: During deployment parts of the
air bag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the air bag module.
10. Disconnect deployment tool fly lead from air
bag.
11. Remove air bag module from holding tools and
place in a sealed bag, ready for disposal.
NOTE: Do not transport deployed SRS
components in the vehicle passenger
compartment.
12. Wipe down holding tools with a damp cloth and
remove from vice.
13. Transport deployed air bag module to
designated area for incineration.
14. Do not re-use or salvage any parts of the
SRS system.
M76 4621
LRT-86-007/04
LRT-86-003/08
LRT-86-003
