REPAIRS

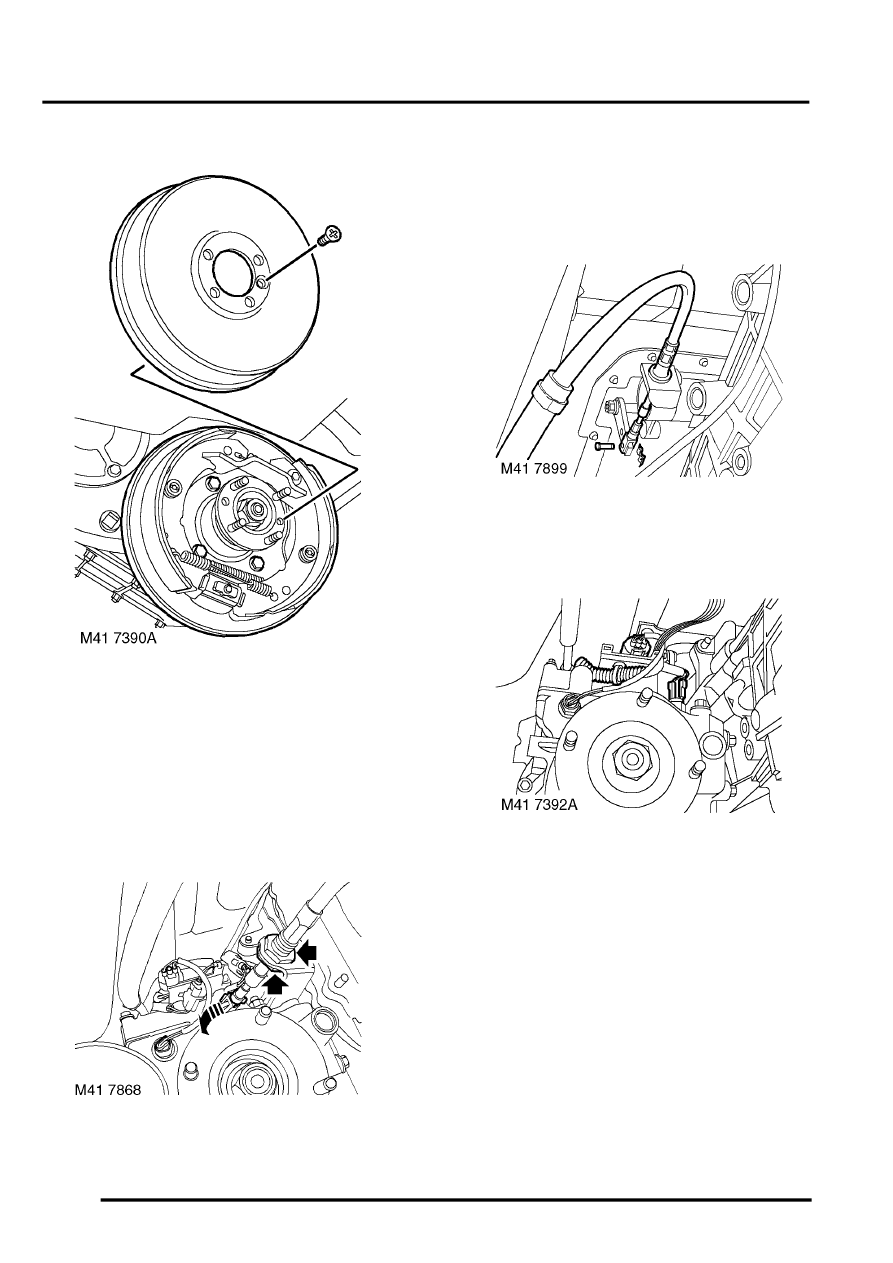

9. Remove handbrake drum retaining screw and
remove drum.
10. Remove 4 bolts from handbrake back plate,
release back plate and tie aside.
11. Models fitted with high/low shift interlock
solenoid: Release interlock solenoid multiplug
and disconnect multiplug from main harness.
12. Models fitted with high/low shift interlock
solenoid: Remove sleeve retaining rings and
remove sleeve from high/low selector cable.
13. If fitted: Release and remove clevis pin
securing differential lock selector cable to
transfer gearbox.
14. If fitted: Loosen locknuts securing differential
lock selector cable to differential lock selector
cable abutment bracket.
15. If fitted: Release and remove differential lock
selector cable from differential lock selector
cable abutment bracket.
16. Remove clevis pin securing high/low ratio
selector cable to selector lever, remove 'C' clip
and release outer cable from abutment bracket.
17. Up to 03 Model Year - if fitted: Disconnect 2
Lucars from differential lock switch and
multiplugs from high/low ratio switch and
neutral sensor.
18. Disconnect multiplug from reverse light switch.
