L322 Range Rover Service Procedures
AIR CONDITIONING
REPAIRS
82-11

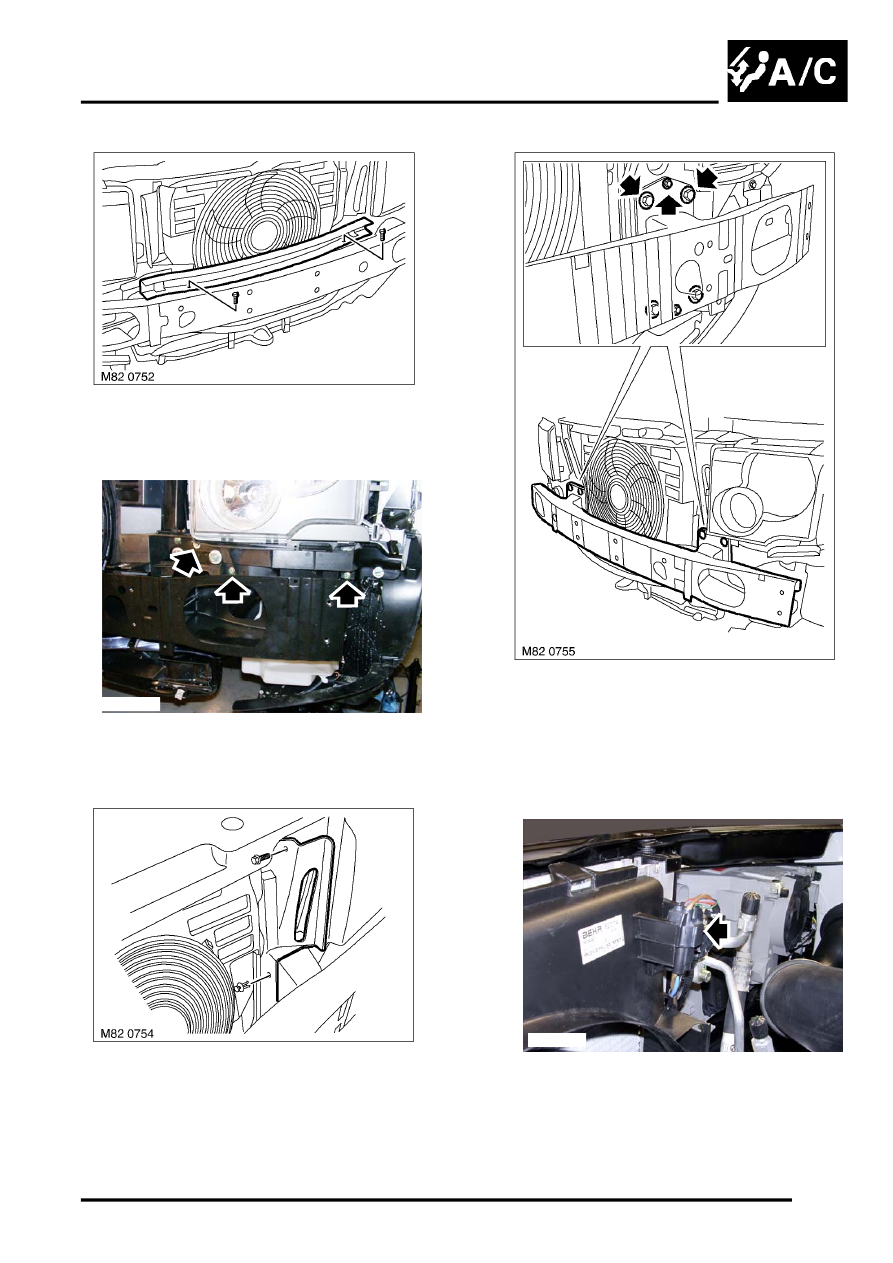

5. Remove 2 screws securing armature extension
and remove extension from armature.
6. Remove 3 bolts securing LH bumper support
bracket. Repeat for RH bracket and remove.
7. Remove screw and scrivet securing LH air
intake deflector, repeat operation on RH.
Remove deflectors.
8. Remove 8 nuts and 4 bolts securing armature.
Cut 2 cable ties and release harness, remove
armature.
NOTE: Do not carry out further dismantling if
component is removed for access only.
9. Disconnect multiplug from condenser cooling
fan motor.
M82 0753
M26 0846
