L322 Range Rover Service Procedures
DOORS
76-1-6
REPAIRS
Glass regulator - front door
$% 76.31.45
Remove
1. Remove front door glass.

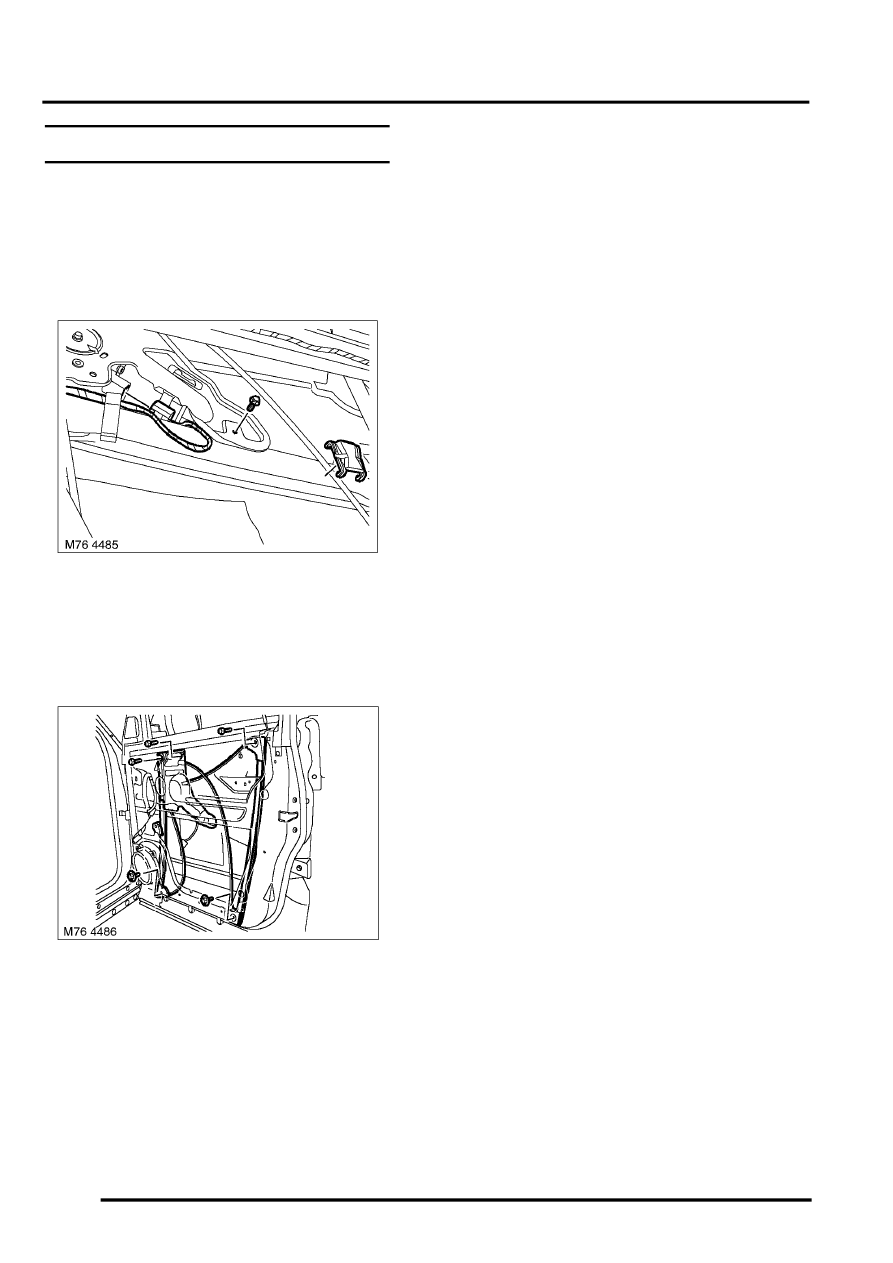

2. Disconnect multiplug from regulator motor.
3. Remove clip securing cable to side impact
protection beam.
4. Remove Torx bolt and clamp securing regulator
to side impact protection beam.
5. Remove 2 lower bolts securing regulator to
door frame and discard.
6. Remove 3 Torx bolts securing regulator to door
frame and withdraw regulator through access
panel.
Refit
1. Position regulator to door and unclip motor
transit package from rail.
2. Fit upper bolts and clamp, tighten to 10 Nm (7
lbf.ft).
3. Fit new lower bolts and tighten to 10 Nm (7
lbf.ft).
4. Fit cable retaining clip.
5. Connect multiplug to motor.
6. Fit door glass.
