ENGINE - V8

OVERHAUL 12-2-103

Gasket - sump bottom plate

$% 12.60.37.01

Remove

1. Position container below engine sump drain

plug, remove plug and discard sealing washer.
Allow oil to drain.

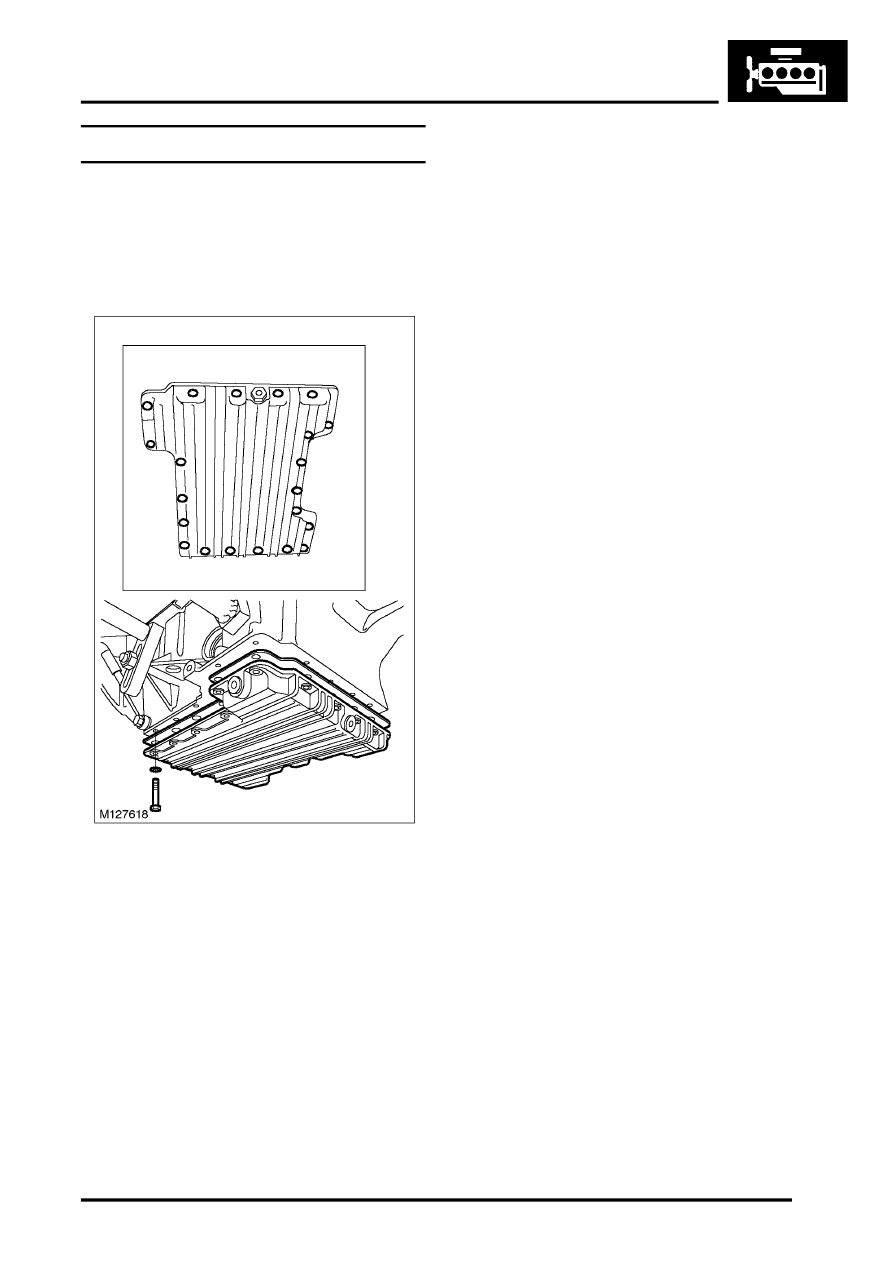

2. Remove 21 bolts securing lower oil sump to

upper oil sump. Remove lower oil sump and
discard gasket.

Disassembly

1.

Inspect

1.

Reassembly

1.

Refit

1. Clean lower oil sump mating faces.
2. Fit new gasket to lower oil sump mating face.
3. Fit lower oil sump.

4. Fit 21 bolts securing lower oil sump and tighten

to 10 Nm (7 lbf.ft).

5. Clean sump drain plug, fit new sealing washer

and tighten to 25 Nm (18 lbf.ft).

6. Fill engine with oil.
