L322 Range Rover Service Procedures
ENGINE - V8
12-2-84 OVERHAUL

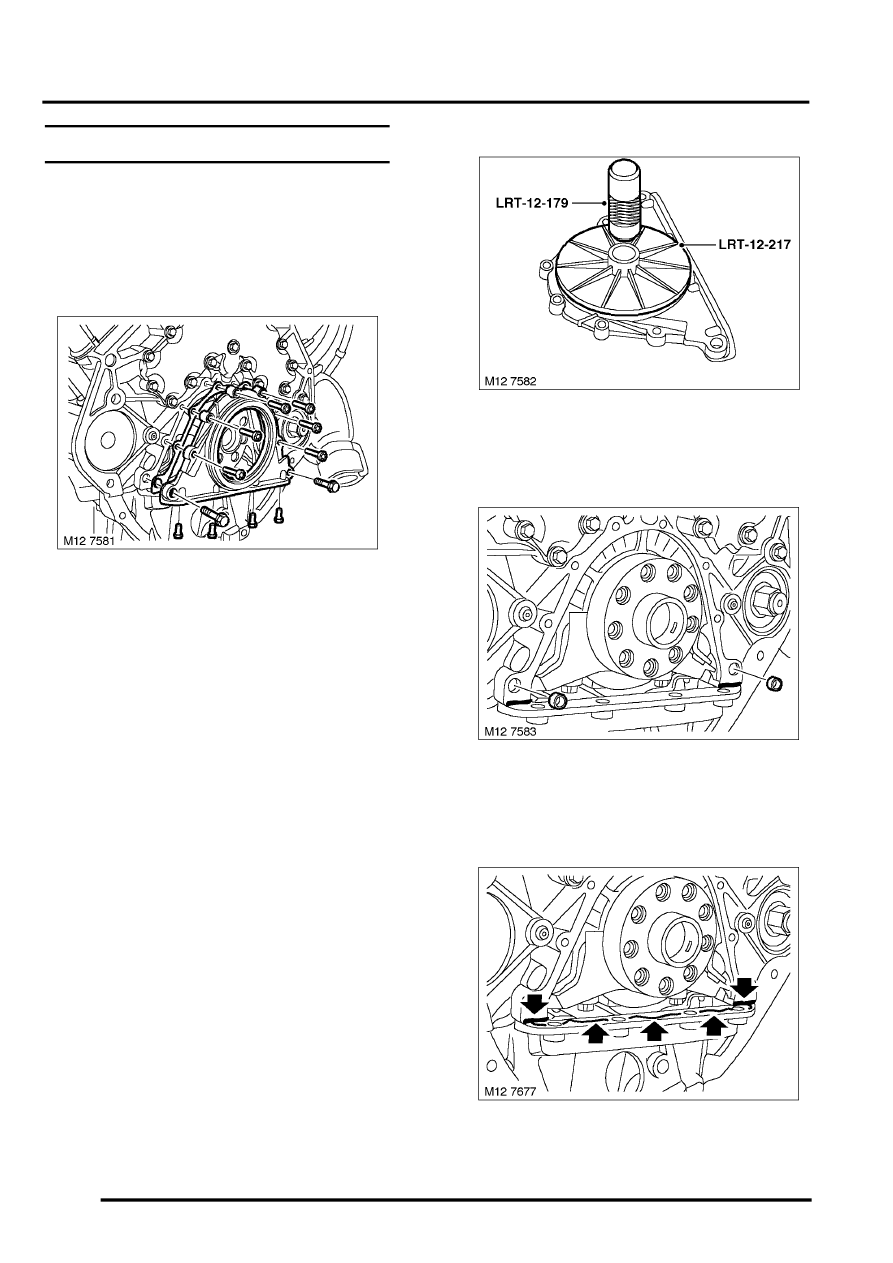

Oil seal - crankshaft - rear
$% 12.21.20.01
Disassembly
1. Remove torque converter drive plate.
2. Remove 6 Torx bolts securing crankshaft rear
oil seal housing and discard sealing washers.
3. Remove 6 bolts securing crankshaft rear oil
seal housing.
4. Carefully release and remove crankshaft rear
oil seal housing.
5. Discard gasket from crankshaft rear oil seal
housing.
6. Remove crankshaft rear oil seal from housing.
Reassembly
1. Clean oil seal housing, dowel and dowel holes.
2. Clean oil seal recess in housing and running
surface on crankshaft.
3. Clean oil seal housing mating face on cylinder
block and remove old sealant from sump
gasket.
4. Fit LRT-12-217 and LRT-12-179 to new
crankshaft rear oil seal and fit new seal to
housing.
5. Check for correct fitment of dowels in cylinder
block.
6. Fit new gasket to crankshaft rear oil seal
housing.
7. Apply sealant to oil seal housing contact points
as shown.
