L322 Range Rover Service Procedures
REAR SUSPENSION
64-20
REPAIRS
7. Remove Allen screw securing hand brake
cable bracket.
8. Position jack to support the lower arm.
9. Reference mark eccentric in relationship to
upper arm.
10. Remove and discard nut and bolt securing hub
to upper arm. Release hub from arm.
11. Remove clip from air spring upper mounting.
12. Remove bolt securing damper to lower arm.
13. Release damper from lower arm.

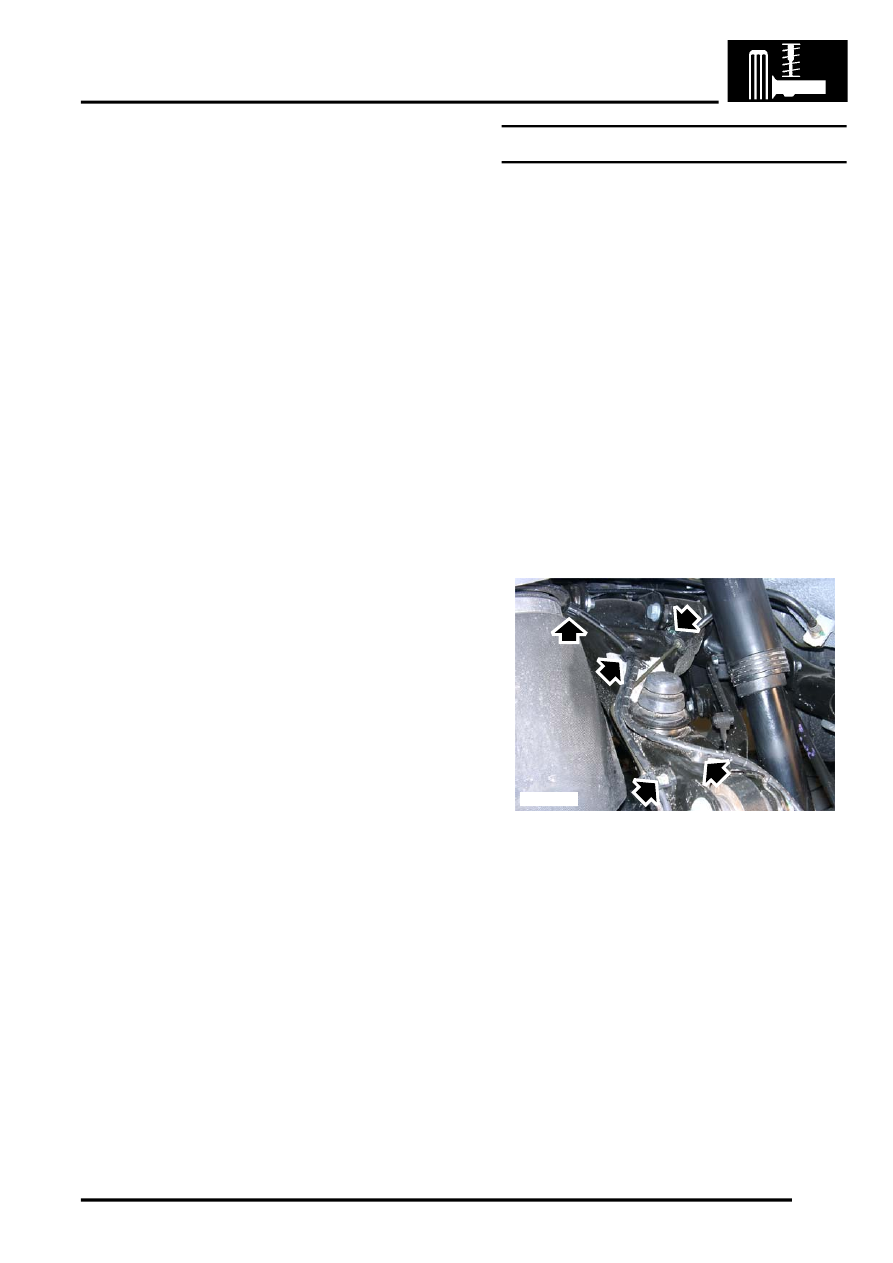

14. Support weight of subframe assembly on a jack
15. Remove 2 bolts securing subframe to body.
16. Lower subframe approximately 75 mm for
access to bolts securing upper arm to
subframe.
17. Remove washer from top of each subframe
bush.
M64 0190
