L322 Range Rover Service Procedures
REAR SUSPENSION
REPAIRS
64-23

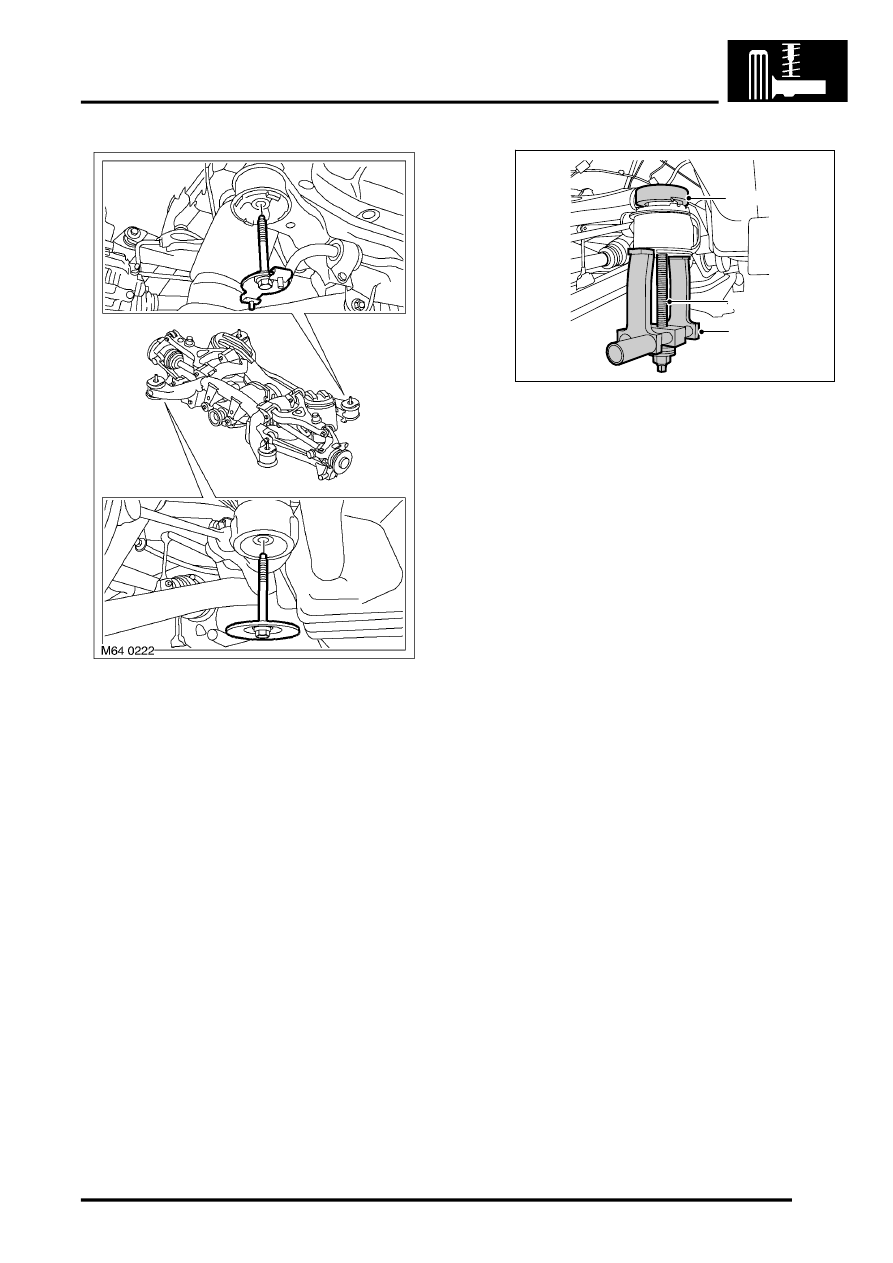

14. Remove 2 diagonally opposite sub-frame
mounting bolts, collect cup washer and exhaust
mounting bracket. Fit cup washer and mounting
bracket to damper mounting bolts. Use
damper bolts as slaves to support sub-
frame.
15. Fit and finger tighten bolts to subframe.
Engage bolts a minimum 16 mm.
16. Remove the 2 remaining sub-frame bolts.
17. Lower sub-frame for access to bushes.
18. Collect slotted spacers from mountings.
19. Note fitted position of bush and paint mark sub-
frame.
20. AssembleLRT-51-024/7.
21. Fit remover LRT-51-024/8 to bush, position
LRT-51-024/7 to sub-frame. Fit draw bar LRT-
51-024/11 to LRT- 51-024/8, align tools and
remove bush.
Refit
1. Clean bush locations and mating faces.
2. Apply rubber lubricant to new bush and bore.
M64 0223
LTR-51-024/11
LTR-51-024/7
LTR-51-024/8
