TRANSFER BOXFront output housing · page 3 of 3
Front output housing (page 3 of 3) – Land Rover LT230 Transfer Box

TRANSFER BOX

OVERHAUL

9

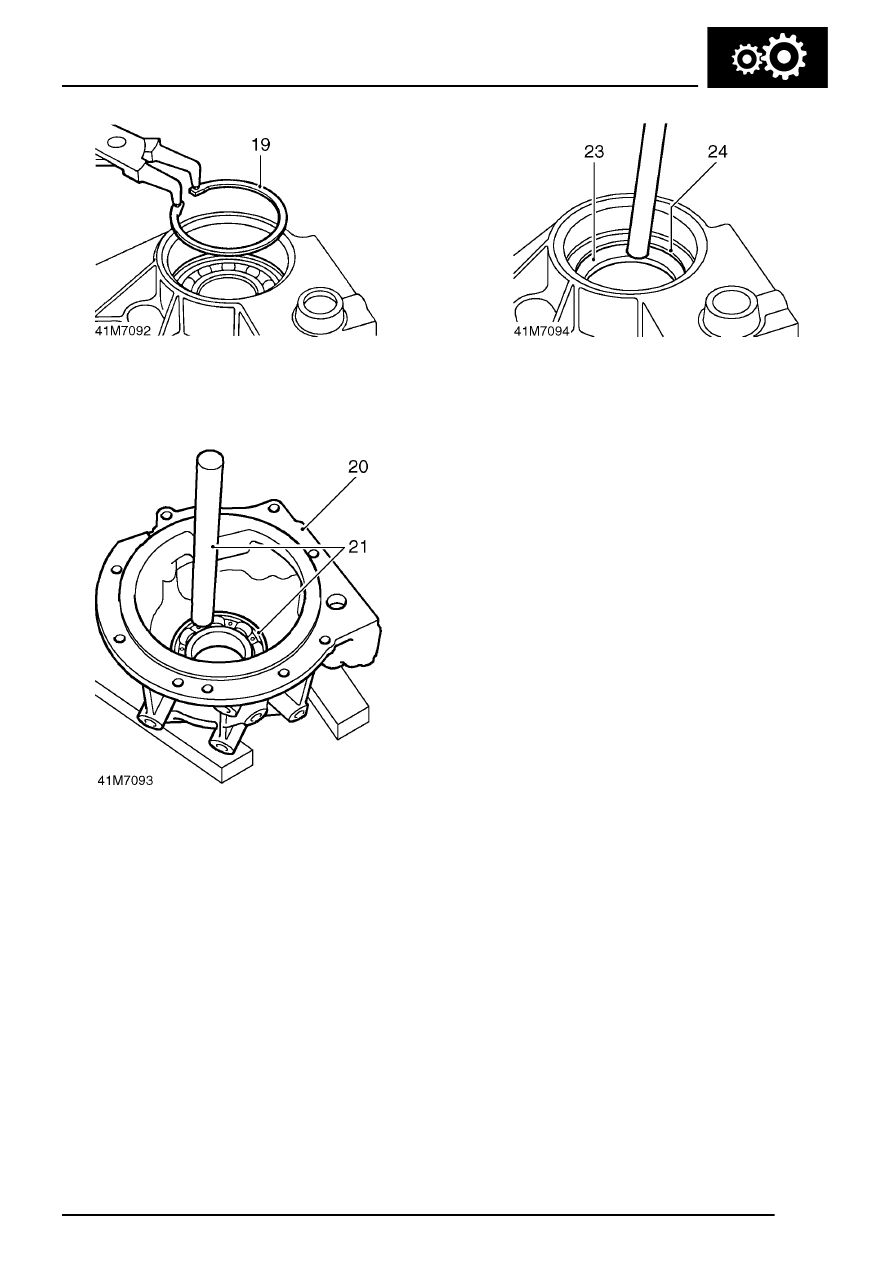

19. Using suitable circlip pliers, remove and

discard circlip retaining output shaft bearing.

20. Support front output housing on suitable blocks

of wood.

21. Using a soft metal drift, drive output shaft

bearing out of housing; discard bearing.

22. Invert front output housing.
23. Using a soft metal drift, drive differential

bearing track out of housing, discard bearing
track.

24. Remove selective shim.
