EVAP CANISTER - ADVANCED EVAPS (up to
99MY)
Service repair no - 17.15.13

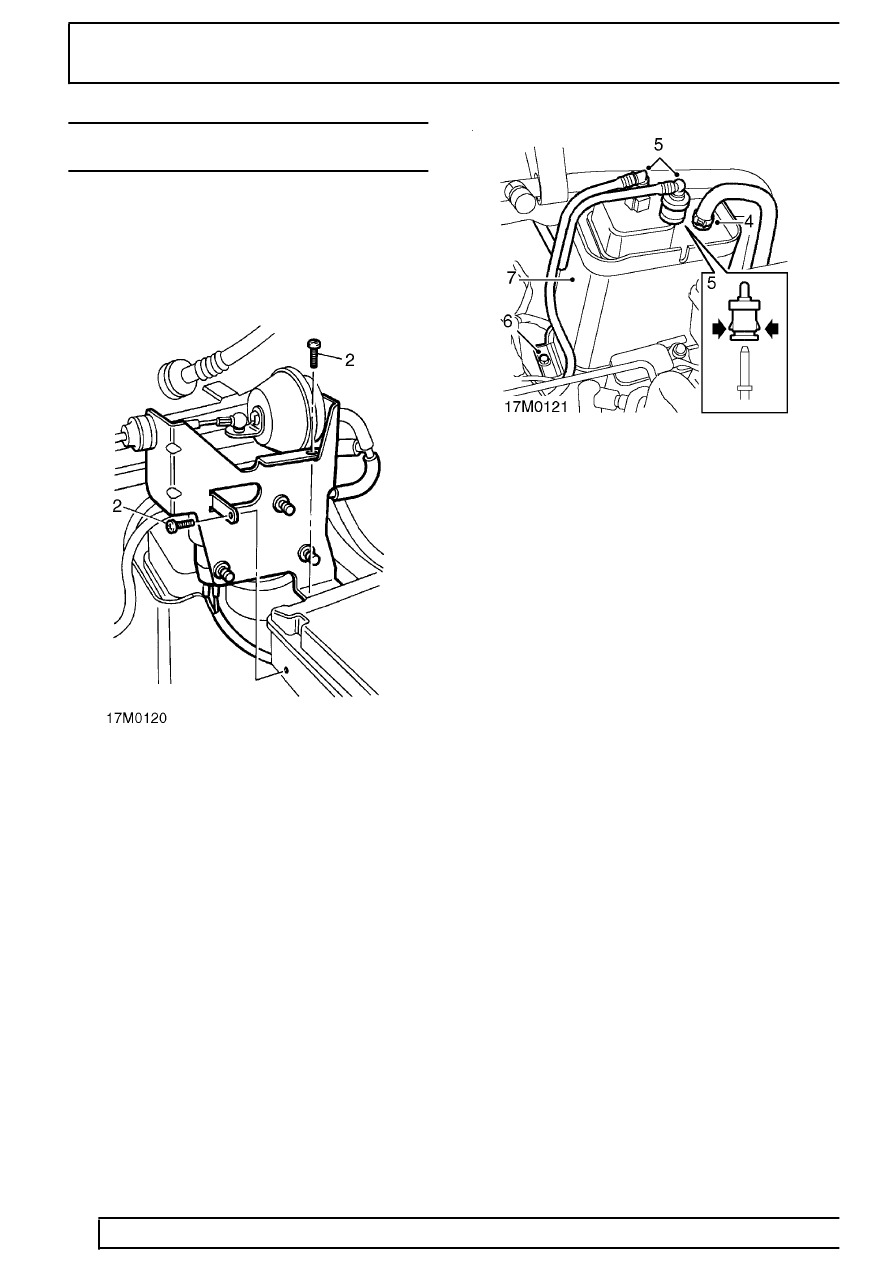

Remove
1. Disconnect battery earth lead.
2. Remove 2 screws securing cruise control
actuator bracket to suspension control box.
3. Position cruise control actuator assembly aside.
4. Release clip securing vent solenoid hose to
cannister and disconnect hose.
5. Release vent and purge quickfit connectors from
canister.
6. Remove bolt securing canister to mounting
bracket and collect clamp plate.
7. Remove canister.
Refit
8. Position canister to mounting bracket.
9. Position clamp plate and secure canister to
bracket with bolt.
10. Connect purge and vent hoses to cannister,
ensuring that quickfit connectors correctly
engage.
11. Connect vent solenoid hose to canister and
secure clip.
12. Align cruise control actuator bracket to
suspension control box and secure with screws.
13. Connect battery earth lead.
