Power mirrors – fault diagnosis

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Fault diagnosis › Power mirrors – fault diagnosis

Power mirrorsPower mirrors – fault diagnosis

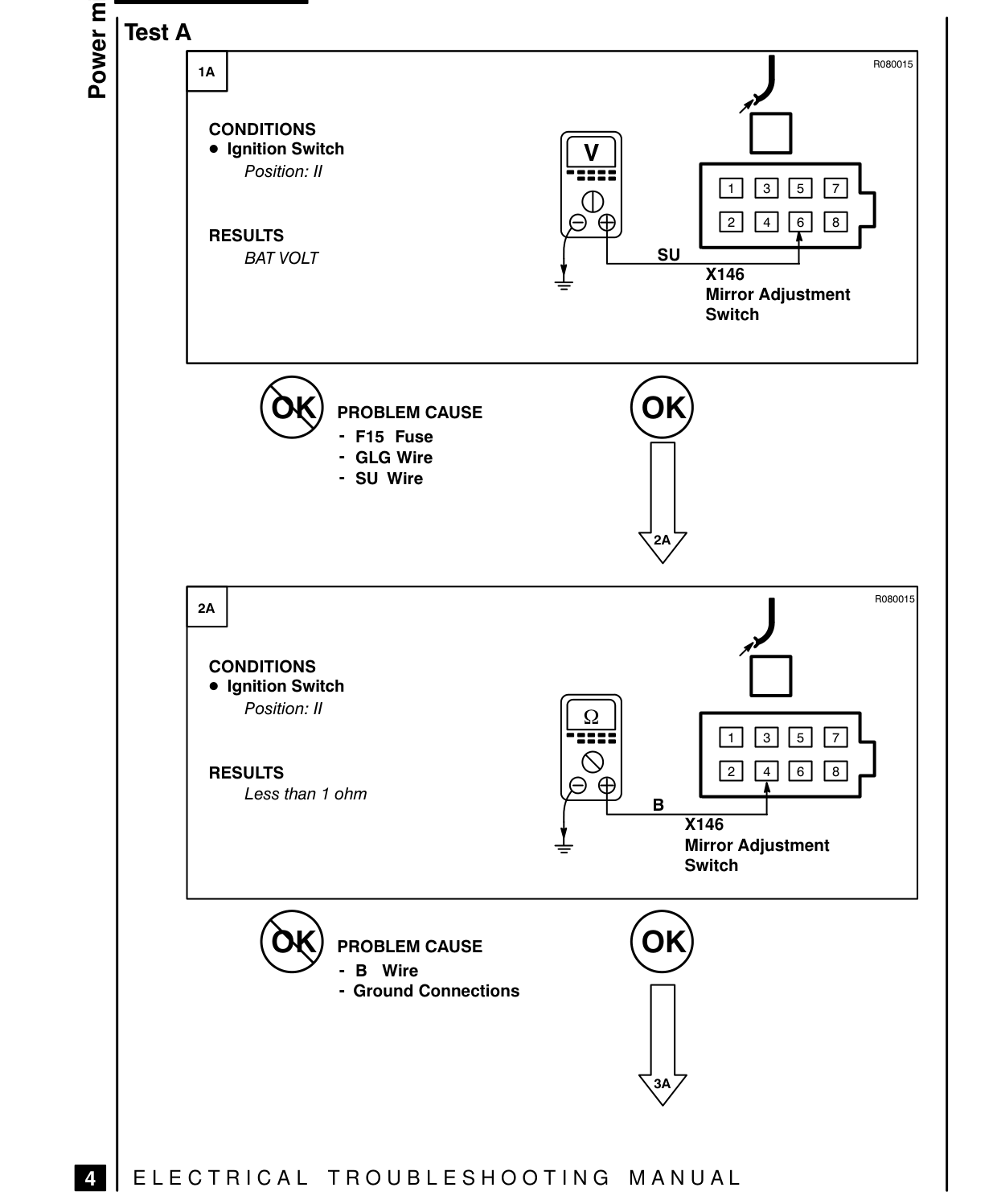

POWER MIRRORS – FAULT DIAGNOSIS

Test est

CONDITIONS ® Ignition Switch BAT VOLT Position: Il

RESULTS

(59) PROBLEM CAUSE F15 Fuse - GLG Wire - SU Wire

CONDITIONS e Ignition Switch Position: Il

RESULTS Less than 1 ohm

(59) PROBLEM CAUSE Wire - Ground Connections

EJ | ELECTRICAL TROUBLESHOOTING MANUAL

R080015

SA EEE Su X146 Mirror Adjustment Switch

R080015

[EE GE “mm QO SA X146 mh Mirror Adjustment Switch

40 General
