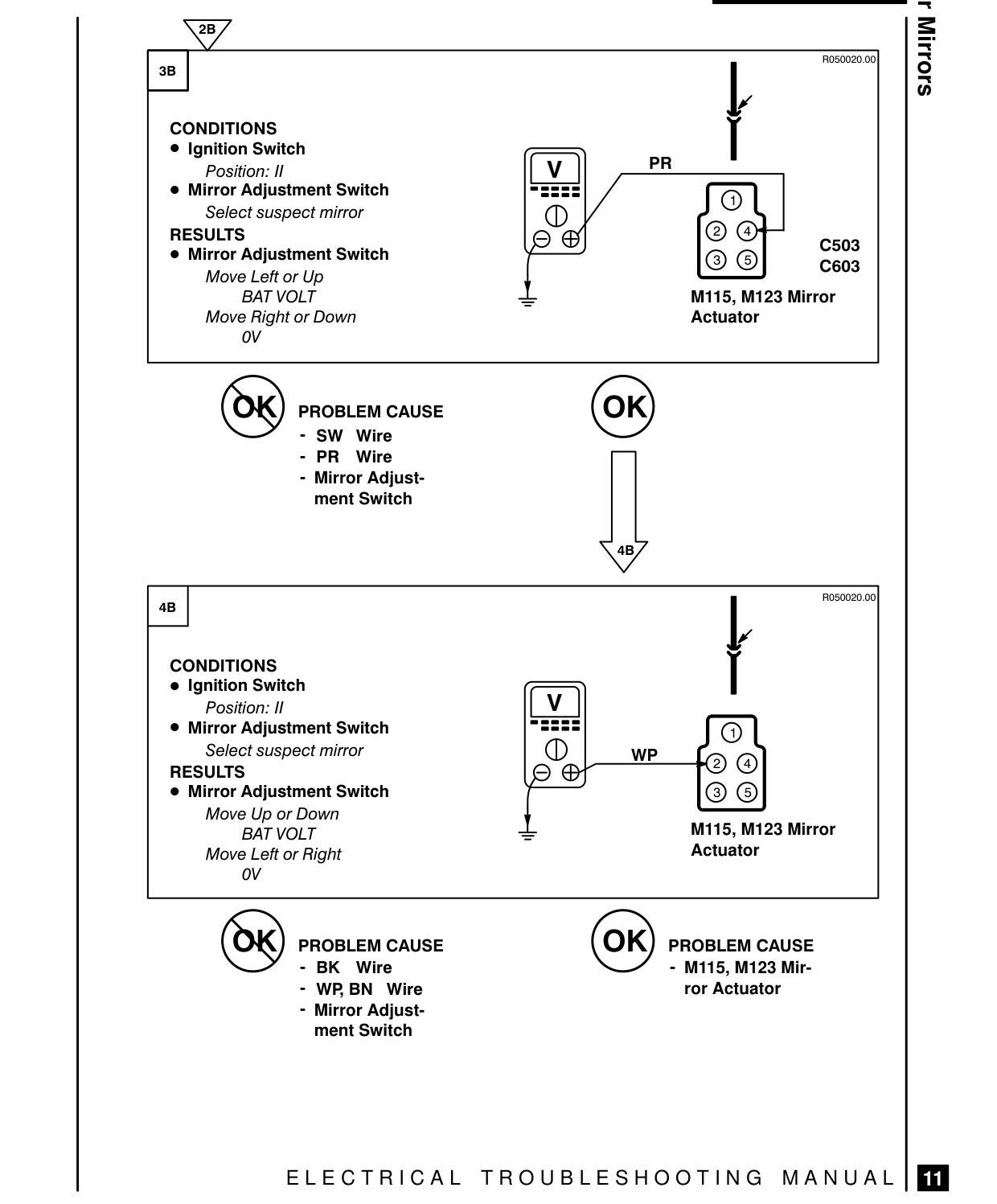

POWER MIRRORS – FAULT DIAGNOSIS
as |
CONDITIONS ® Ignition Switch Position: I ® Mirror Adjustment Switch Select suspect mirror RESULTS e Mirror Adjustment Switch Move Left or Up BAT VOLT Move Right or Down ov
(59) PROBLEM CAUSE - SW Wire - PR Wire = Mirror Adjustment Switch
us |
CONDITIONS ® Ignition Switch Position: Il ® Mirror Adjustment Switch Select suspect mirror RESULTS e Mirror Adjustment Switch Move Up or Down BAT VOLT Move Left or Right ov
(59) PROBLEM CAUSE - BK Wire - WP, BN Wire - Mirror Adjustment Switch
ELECTRICAL TROUBLESHOOTING MANUAL | ki
R050020.00 Po) »
PR =z==c aD OG C503 C603
M115, M123 Mirror Actuator
R050020.00
Saaa= aD WP Oo ®
siz M115, M123 Mirror Actuator
PROBLEM CAUSE = M115, M123 Mirror Actuator
