Power mirrorsPower mirrors – fault diagnosis
POWER MIRRORS – FAULT DIAGNOSIS

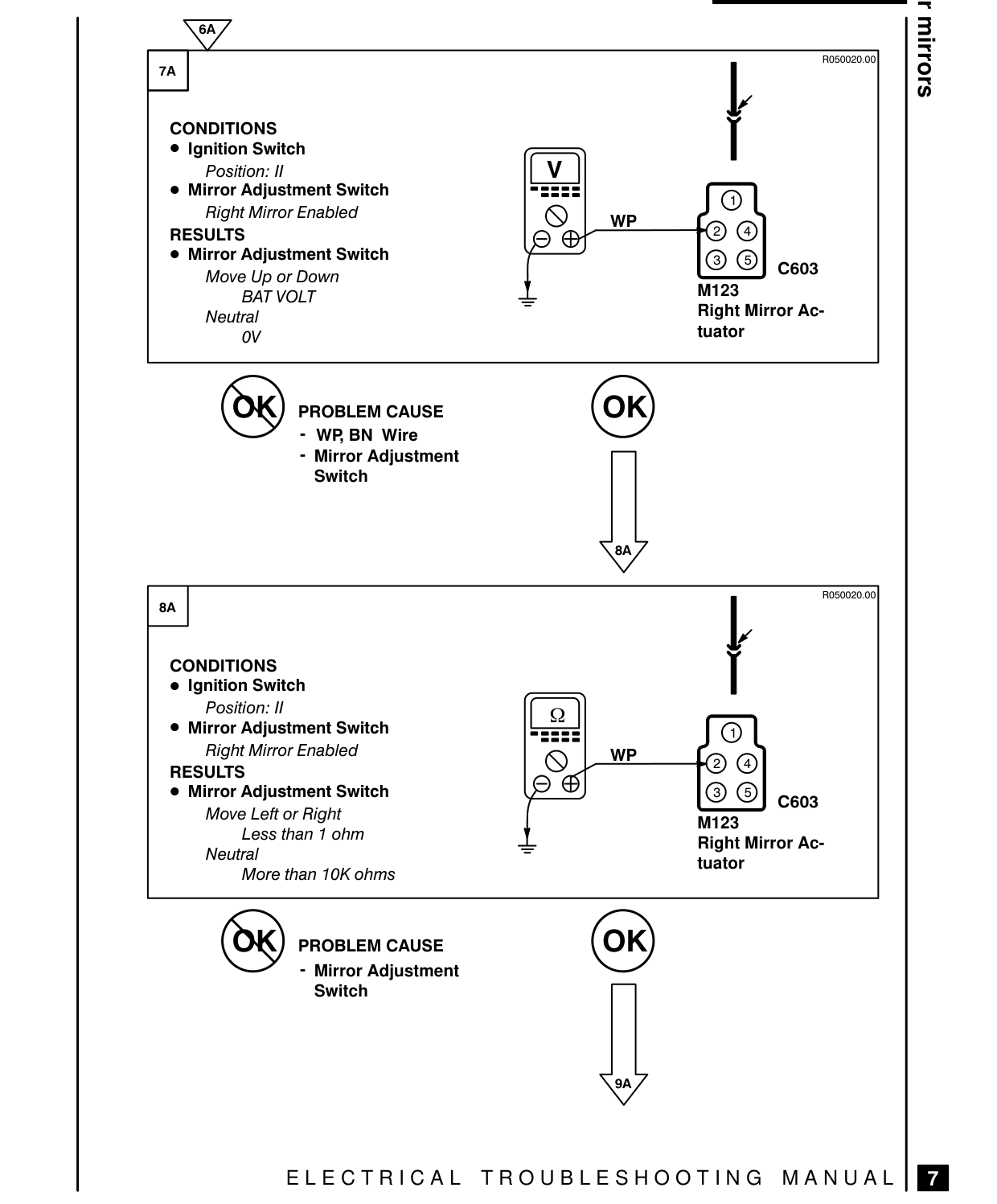

CONDITIONS ® Ignition Switch Position: Il ® Mirror Adjustment Switch Right Mirror Enabled RESULTS e Mirror Adjustment Switch Move Up or Down BAT VOLT Neutral ov
(59) PROBLEM CAUSE - WP, BN Wire - Mirror Adjustment Switch
CONDITIONS ® Ignition Switch Position: Il ® Mirror Adjustment Switch Right Mirror Enabled RESULTS e Mirror Adjustment Switch Move Left or Right Less than 1 ohm Neutral More than 10K ohms
(59) PROBLEM CAUSE = Mirror Adjustment Switch
ELECTRICAL
pA
050020.00
=z==c WP Od 603 M23 Right Mirror Actuator
R050020.00
c==s== WP ASS C603 M123 Right Mirror Actuator
TROUBLESHOOTING MANUAL
