Power mirrors – fault diagnosis
- Make
- Land Rover
- Model
- Range Rover Classic Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Fault diagnosis › Power mirrors – fault diagnosis
Power mirrorsPower mirrors – fault diagnosis

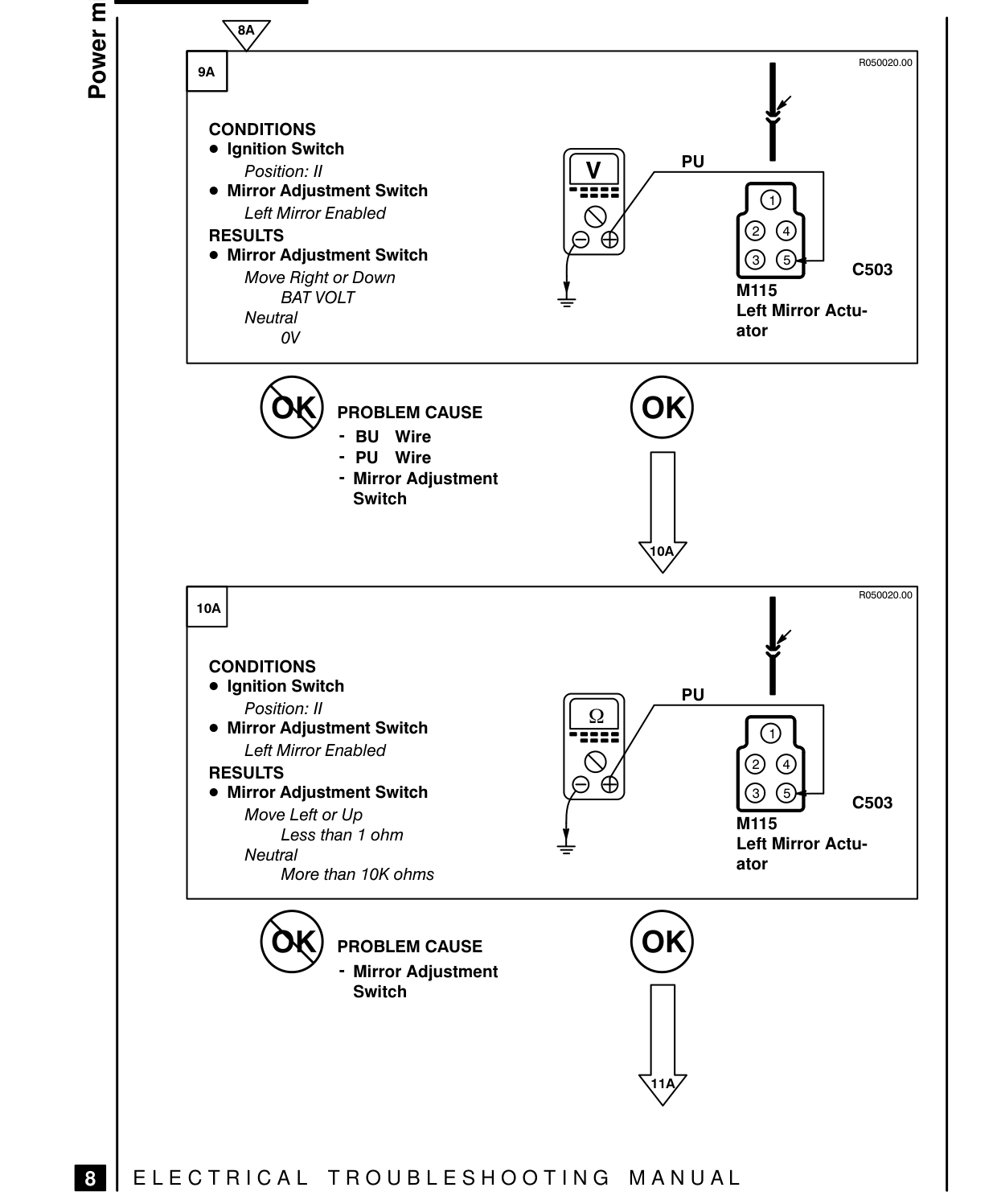

POWER MIRRORS – FAULT DIAGNOSIS
NV
CONDITIONS ® Ignition Switch Position: I ® Mirror Adjustment Switch Left Mirror Enabled RESULTS ® Mirror Adjustment Switch Move Right or Down BAT VOLT Neutral ov
(59) PROBLEM CAUSE - BU Wire - PU Wire - Mirror Adjustment Switch
CONDITIONS e Ignition Switch Position: I ® Mirror Adjustment Switch Left Mirror Enabled RESULTS e Mirror Adjustment Switch
Less than 1 ohm Neutral More than 10K ohms
(59) PROBLEM CAUSE = Mirror Adjustment Switch
EJ | ELECTRICAL TROUBLESHOOTING MANUAL
R050020.00
PU
=2222 Oo & C503 M115 wh Left Mirror Actuator
R050020.00
PU
SY C503
Left Mirror Actuator
