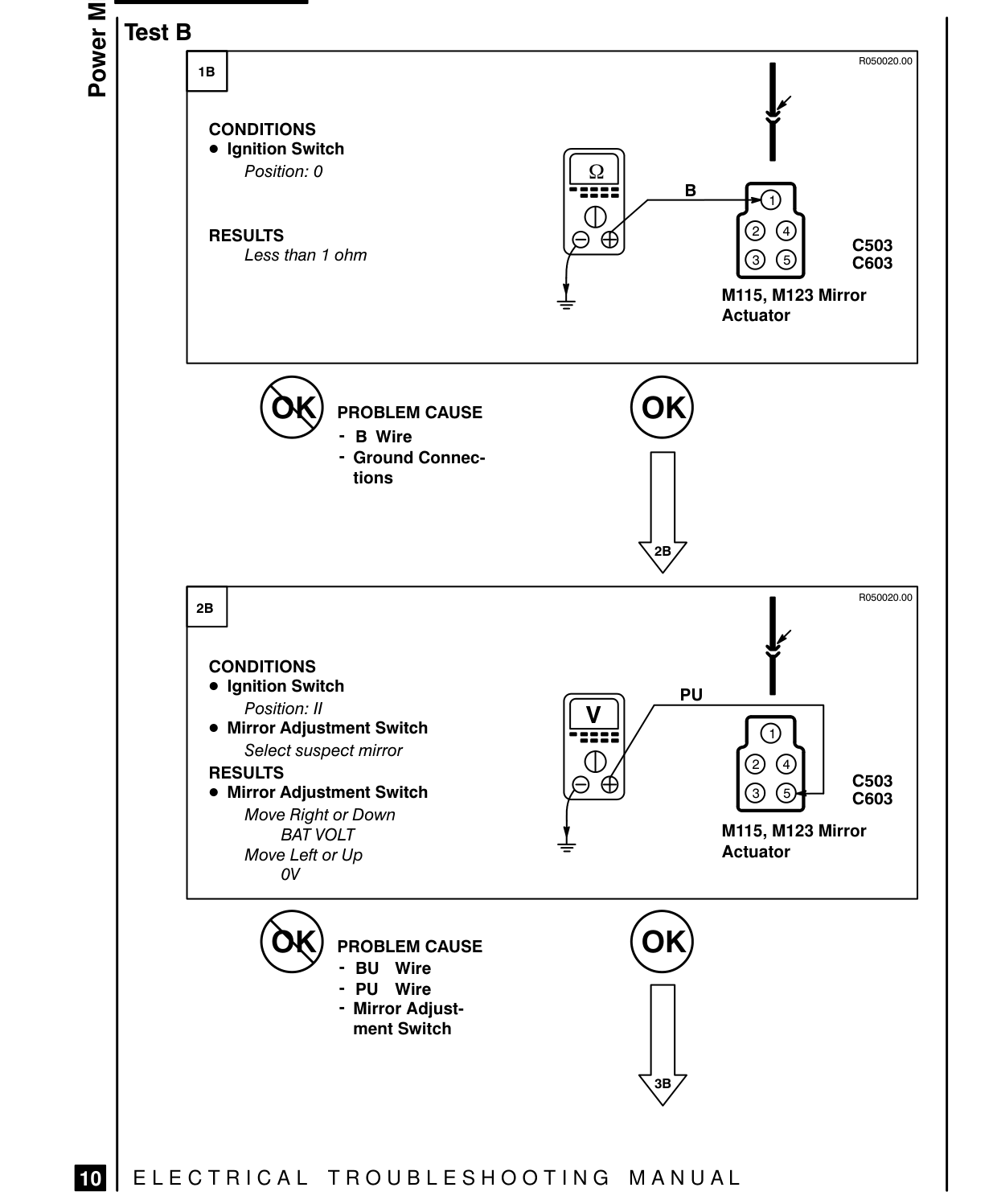

POWER MIRRORS – FAULT DIAGNOSIS
| Test B
CONDITIONS ® Ignition Switch Position: 0
RESULTS Less than 1 ohm
(59) PROBLEM CAUSE - B Wire - Ground Connections 25 | CONDITIONS e Ignition Switch Position: II ® Mirror Adjustment Switch Select suspect mirror RESULTS e Mirror Adjustment Switch Move Right or Down BAT VOLT Move Left or Up ov
(59) PROBLEM CAUSE - BU Wire - PU Wire - Mirror Adjustment Switch
ELECTRICAL TROUBLESHOOTING MANUAL
R050020.00
ol 1-1-1
C503 ® 6G C603
M115, M123 Mirror Actuator
R050020.00
PU
eo C503 C603
M115, M123 Mirror Actuator
