Range Rover Classic
HEATING AND VENTILATION
7
REPAIR

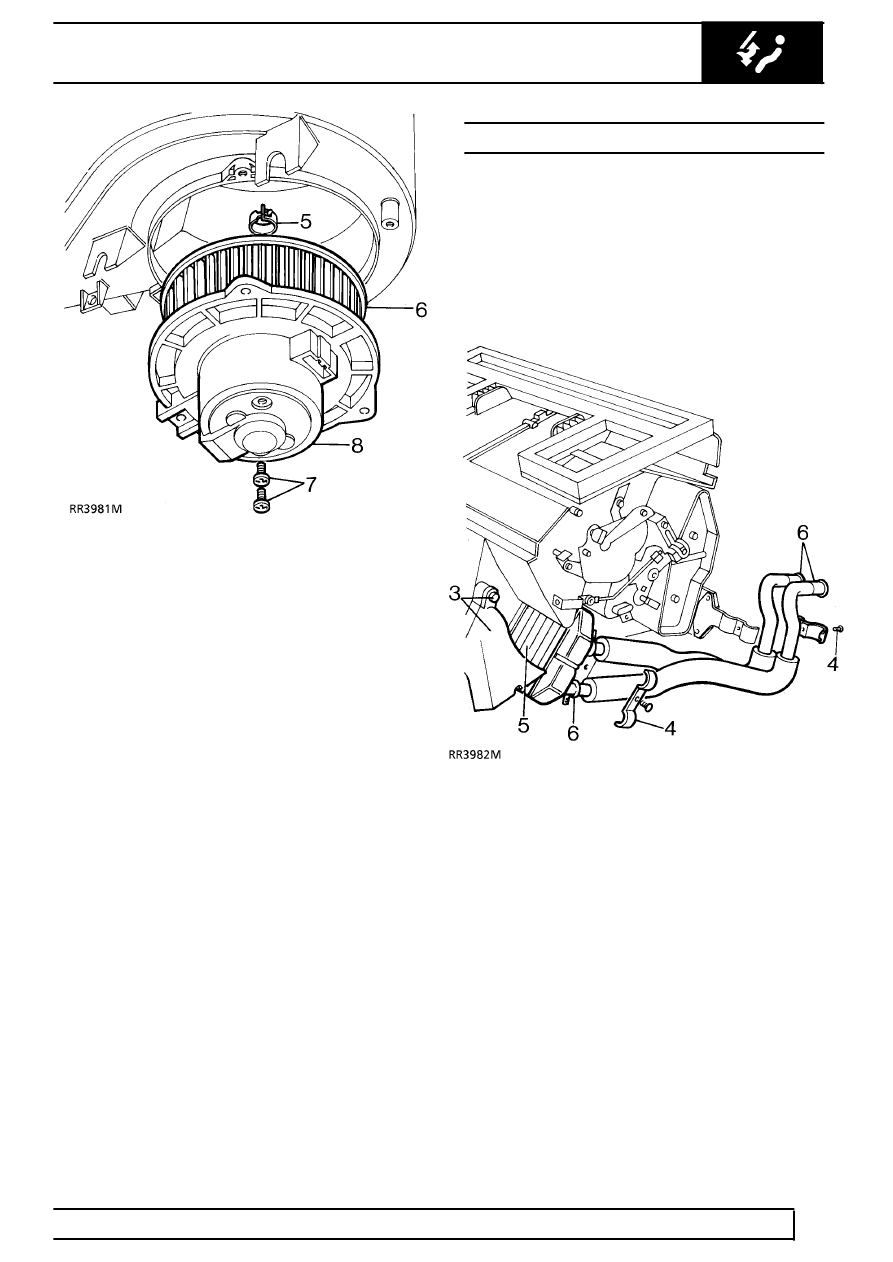

5. Remove fan retaining clip.
6. Remove fan.
7. Remove 2 screws securing motor to casing.
8. Remove blower motor.
Refit
9. Reverse removal procedure.
HEATER MATRIX
Service repair no - 80.20.29
Remove
1. Remove heater unit.
See AIR CONDITIONING,
Repair, Heater and Cooler Unit
2. Remove evaporator.
See AIR CONDITIONING,
Repair, Evaporator and Expansion Valve
3. Remove 2 screws and remove RH side footwell
outlet.
4. Remove heater pipe clips.
5. Slide heater matrix from casing.
6. Release 2 clips and remove 2 heater pipes from
matrix.
Refit
7. Reverse removal procedure.
