ABS hydraulic modulator - 2000my on

4. Remove nut securing earth lead to motor and disconnect lead.
5. Disconnect 2 inlet brake pipe unions from top of modulator.

CAUTION: Plug the connections.

6. Disconnect 3 outlet brake pipe unions from modulator.

CAUTION: Plug the connections.

7. Loosen 3 nuts securing modulator to mounting bracket.
8. Release modulator from mounting bracket and remove. Do not carry out further dismantling if component is removed for access only.
9. Remove 3 mounting rubbers from modulator.
10. Fit mounting rubbers to NEW modulator.

Refit

1. Fit modulator to mounting bracket and tighten mounting nuts to 10 Nm.
2. Connect brake pipe unions to modulator, ensuring pipes are connected to their correct ports, as follows: MC 1 = Master cylinder primary MC 2 = Master cylinder secondary RF = Right hand front LF = Left hand front R = Rear
3. Connect earth lead to modulator, fit and tighten nut.
4. Connect multiplug to modulator and secure clip.
5. Bleed brakes. See Adjustments.
6. Connect battery earth lead.

ABS HYDRAULIC MODULATOR - 2000MY ON

Service repair no - 70.25.12

Remove

1. Disconnect battery earth lead.
2. Position cloth under modulator to absorb brake fluid.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

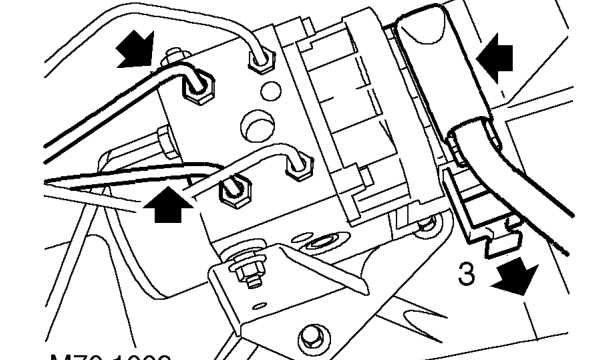

3. Release clip securing ABS modulator multiplug and disconnect multiplug.
4. Disconnect 2 inlet brake pipe unions from top of modulator.

CAUTION: Plug the connections.
