BRAKE CALIPER CARRIER - FRONT

Service repair no - 70.55.28

Remove

  1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Brake caliper carrier - front – Remove road wheel(s).

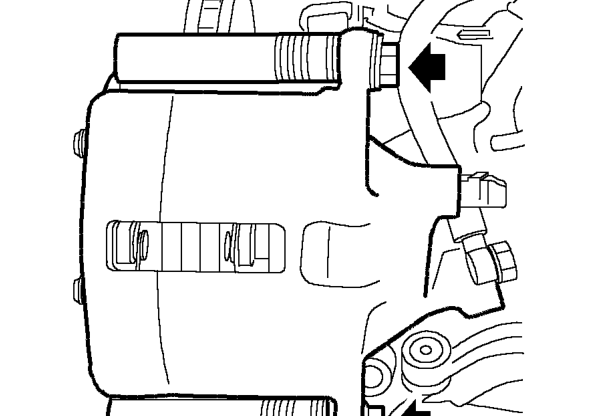

  1. Remove 2 guide pin bolts securing caliper housing to carrier.
Brake caliper carrier - front – Remove 2 guide pin bolts securing caliper housing to carrier.

NOTE: Mark location of pads if same ones are to be replaced. Pads must be refitted to original locations.

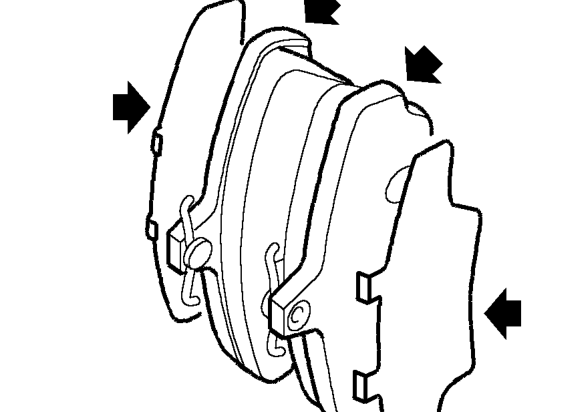

  1. Position caliper housing aside and remove 2 brake pads.
  2. Remove and discard 2 shims from pads.

CAUTION: Do not allow caliper to hang from hose as damage may result.

Brake caliper carrier - front – Remove and discard 2 shims from pads.

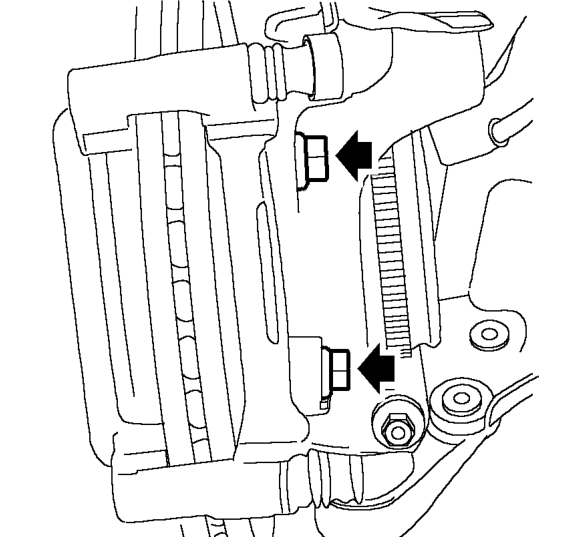

  1. Remove 2 bolts securing caliper carrier to swivel hub and remove carrier.
