Fluid level switch

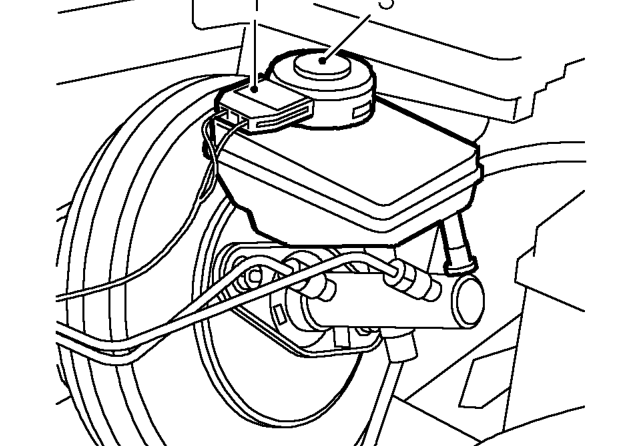

FLUID LEVEL SWITCH

Service repair no - 70.25.08

Remove

1. Disconnect switch multiplug.
2. Clean area around reservoir cap.
3. Remove cap/switch assembly.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

Refit

1. Check and top-up fluid level.
2. Fit cap/switch assembly.
3. Connect switch multiplug.

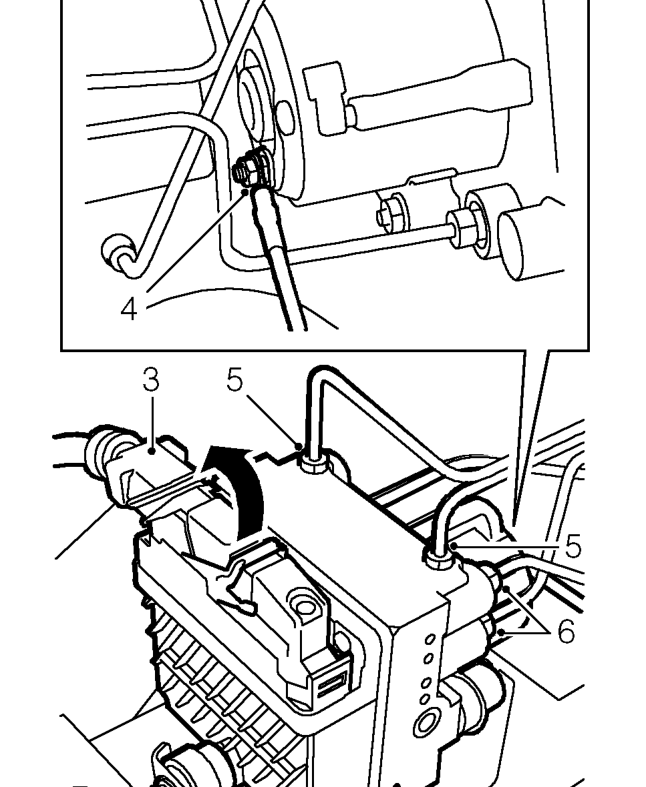

ABS HYDRAULIC MODULATOR - UP TO 2000MY

Service repair no - 70.25.12

Remove

1. Disconnect battery earth lead.
2. Position cloth under modulator to absorb brake fluid.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

3. Raise clip, lift rear of multiplug and disengage from modulator ECU.
