BRAKE SERVO

Service repair no - 70.50.01

Remove

  1. Remove underbonnet closing panel. See BODY, Exterior fittings.
  2. Remove spare wheel.

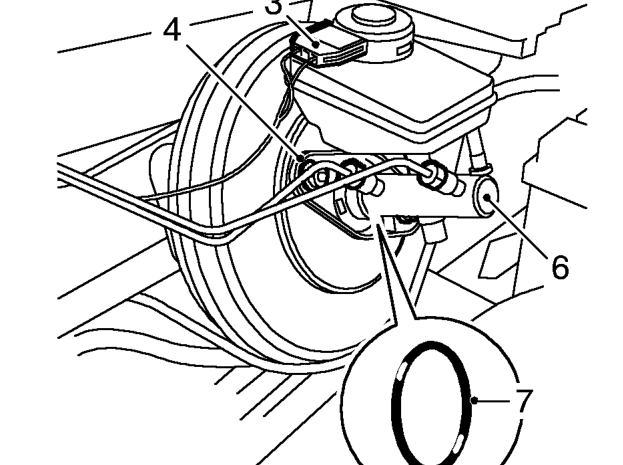

Brake servo – Remove spare wheel.
  1. Disconnect fluid level switch.
  2. Remove 2 nuts and washers securing master cylinder to brake servo.
  3. Release brake pipes from bulk head clips.

CAUTION: Do not bend brake pipes when removing master cylinder.

  1. Remove master cylinder from brake servo.
  2. Remove ’O’ ring from master cylinder and discard.
  3. Tie master cylinder aside so that weight of master cylinder is supported.

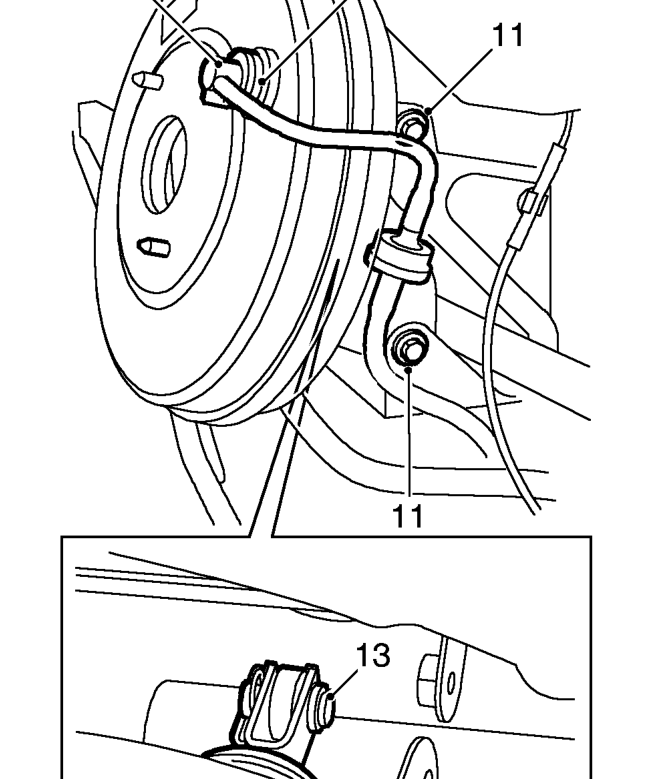

Brake servo – Tie master cylinder aside so that weight of master cylinder is supported.
  1. Carefully prise vacuum hose connection from brake servo.
  2. Remove and discard sealing rubber.
  3. Remove 2 inboard bolts and loosen 2 outboard bolts securing servo bracket.
  4. Release servo from bracket for access to clevis pin.
  5. Remove split pin and withdraw clevis pin securing crank to servo push rod.
  6. Remove servo assembly.
