PEDAL BOX ASSEMBLY

Service repair no - 70.35.03

Remove

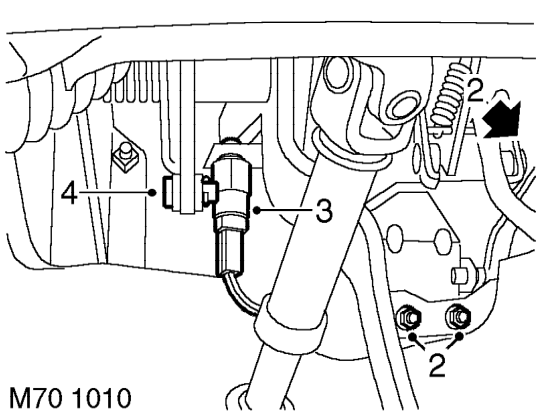

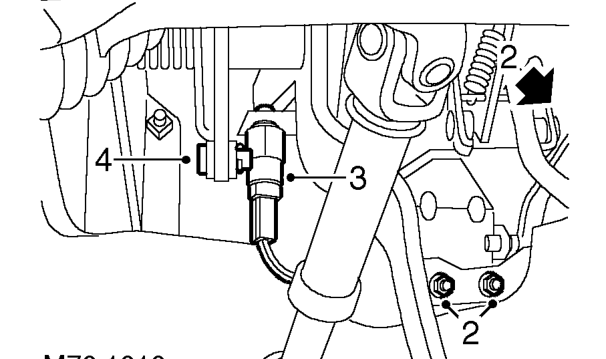

1. Remove bulkhead closing panel. See BODY, Repairs.

2. Remove 2 nuts and 1 bolt securing throttle pedal. Release pedal and position aside.
3. Release brake light switch and position aside.

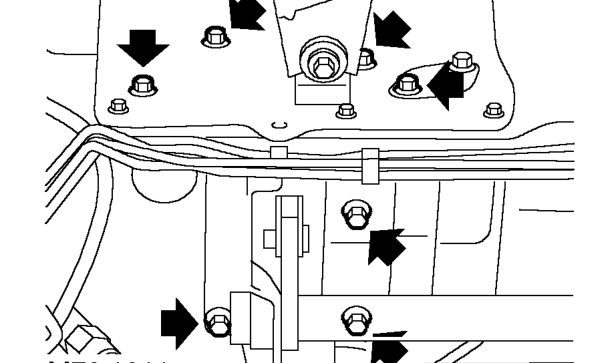

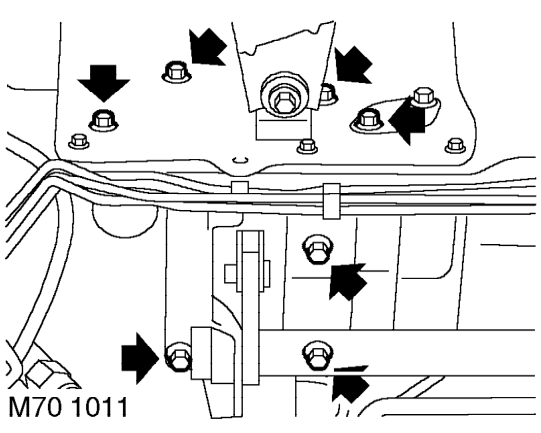

4. Remove clip securing brake pedal push rod clevis pin and remove clevis pin.

5. With assistance, remove 3 nuts and bolts and 4 bolts securing pedal box assembly.

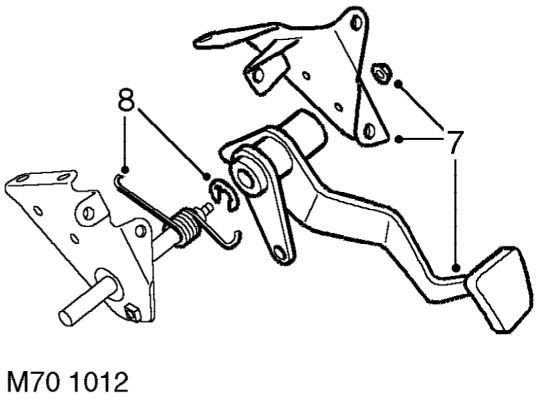

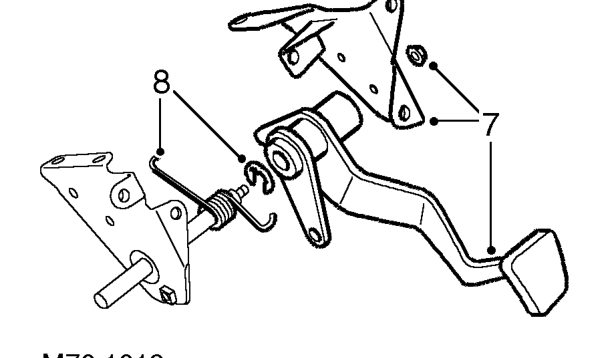

6. Manoeuvre pedal box assembly over steering column and remove assembly.

7. Remove nut securing end bracket and remove end bracket and pedal.
8. Remove return spring circlip and return spring from pivot shaft.

Refit

1. Position return spring on pivot shaft and secure with circlip.
2. Examine pedal bushes for wear or damage and replace as required.
3. Position pedal and end bracket, fit nut and tighten to 22 Nm.
4. Position pedal box assembly, manoeuvre over steering column and align to bulkhead.
5. Fit and tighten nuts and bolts securing pedal box assembly to 22 Nm.
6. Align brake pedal push rod, fit clevis pin and secure with clip.
7. Position brake light switch and secure in end bracket.
8. Position throttle pedal, fit nuts and tighten to 6 Nm.
9. Fit bulkhead closing panel. See BODY, Repairs.
