FRONT BRAKE DISC

Service repair no - 70.10.10

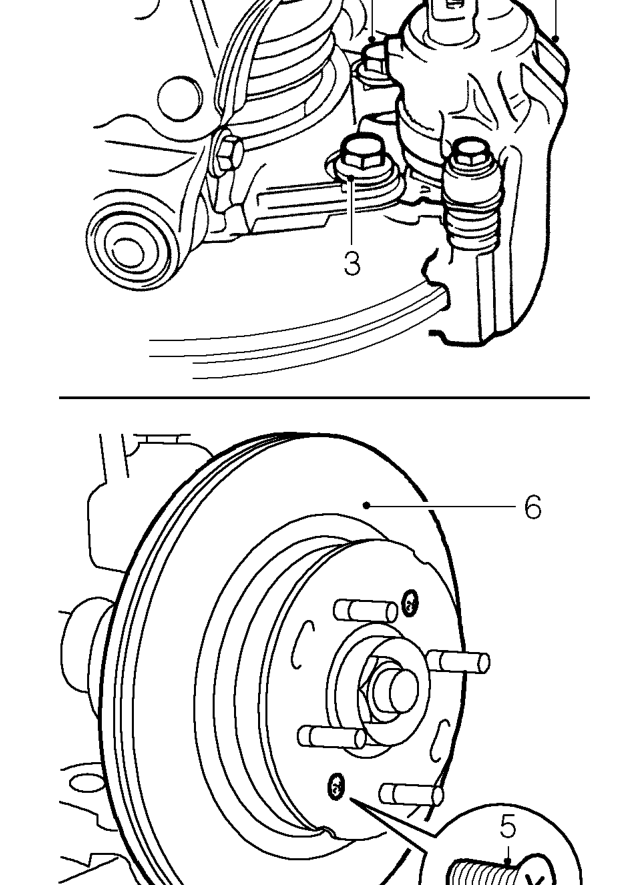

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

3. Remove 2 bolts securing brake caliper to hub.
4. Move caliper aside. Tie caliper clear of brake disc, ensuring that weight of caliper is supported.

CAUTION: Do not allow caliper to hang on brake hose as weight of caliper may damage hose.

5. Remove 2 screws securing brake disc to drive flange.
6. Remove brake disc.

Refit

CAUTION: Brake discs must be replaced in pairs.

1. Wire brush drive flange to remove all corrosion deposits. Clean new brake disc.
2. Fit brake disc to drive flange, fit screws and tighten to 7 Nm.
3. Check disc run-out. See Adjustments.
4. Examine brake pads and renew if necessary.
5. Fit brake caliper to hub, fit and tighten bolts to 85 Nm .
6. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
7. Remove stand(s) and lower vehicle.
