Rear brake disc

REAR BRAKE DISC

Service repair no - 70.10.33

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

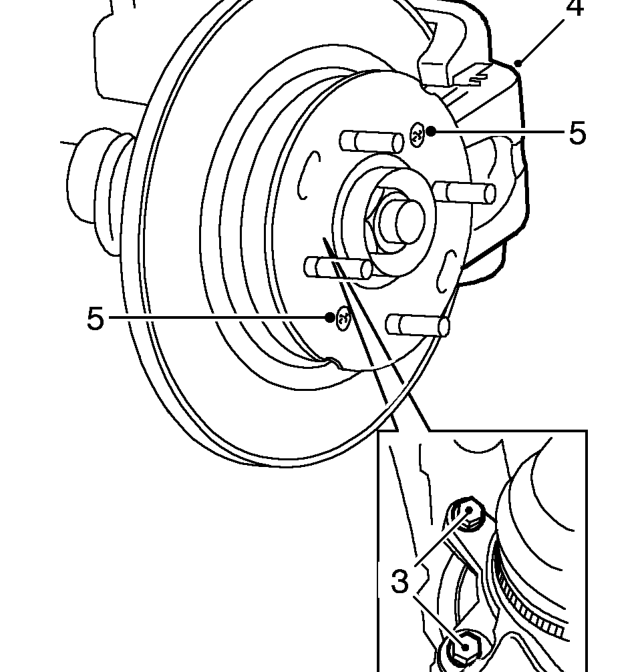

3. Remove 2 bolts securing brake caliper to hub.
4. Release caliper from disc. Tie caliper clear of brake disc, ensuring the weight of the caliper is supported.

CAUTION: Do not allow caliper to hang on brake hose as weight of caliper may damage hose.

5. Remove 2 screws securing brake disc to drive flange.
6. Remove brake disc.

Refit

1. Wire brush drive flange to remove all corrosion deposits.
2. Clean drive flange and NEW disc.

CAUTION: Brake discs must only be replaced in pairs, unless: The vehicle has covered less than 1000 miles

3. Fit brake disc to drive flange. Tighten screws to 7 Nm.
4. Check disc run-out. See Adjustments.
5. Examine brake pads and renew if necessary.
6. Fit brake caliper to hub, fit and tighten bolts to 85 Nm .
7. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
8. Remove stand(s) and lower vehicle.
