Workshop Manuals Factory service & repair MG
MG MGF Factory Workshop Manual (1995-2000)15 · Brakes
15 · Brakes

Handbrake warning switch

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Handbrake warning switch
BrakesHandbrake warning switch

HANDBRAKE WARNING SWITCH

Service repair no - 70.35.40

Remove

  1. Remove handbrake lever. See this section.

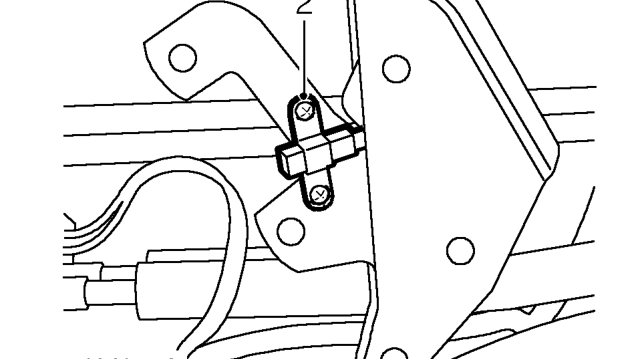

Handbrake warning switch – Remove handbrake lever. See this section.
  1. Remove 2 screws securing switch to lever and collect switch.

Refit

  1. Fit switch and secure with screws.
  2. Fit handbrake lever. See this section.

BRAKE LIGHT SWITCH

Service repair no - 70.35.42

Remove

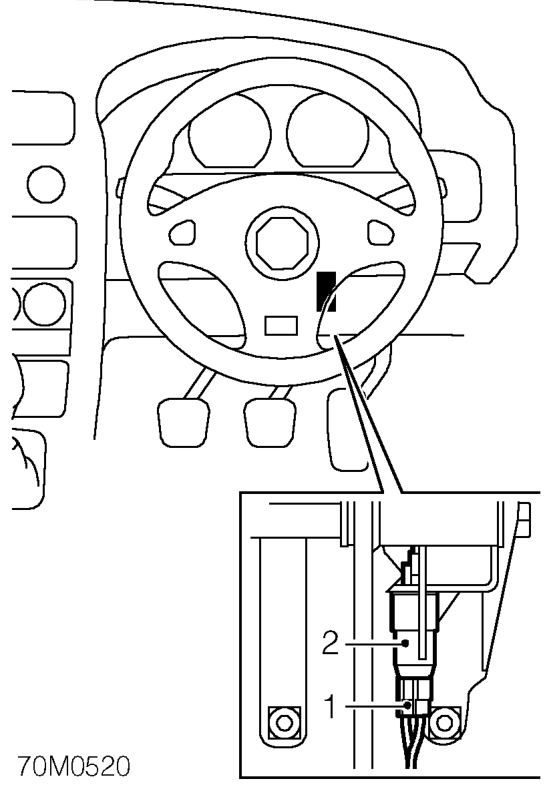

Brake light switch – Service repair no - 70.35.42
  1. Release 2 Lucar connectors from switch.
  2. Release bayonet fixing and remove switch.

Refit

  1. Fit switch to pedal box.
  2. Connect Lucar connectors.
  3. Adjust switch. See Adjustments.
