Handbrake lever (page 4 of 4)

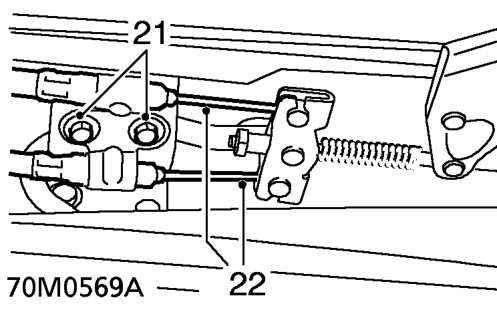

21. Remove 2 bolts securing handbrake abutment clamp to tunnel and remove clamp.
22. Release handbrake cables from compensator.
23. Remove handbrake cables from tunnel and engine compartment.

Refit

1. Position handbrake cables to tunnel and feed through rear bulkhead.
2. Feed handbrake cables into position in engine compartment.
3. Lubricate all four cables with soft soap to ease grommet movement on cables.
4. Position handbrake cables into closing plate slots and secure with grommets.
5. Align closing plate to bulkhead and secure with bolts.
6. Lift subframe on jack, fit subframe front mounting bolts and tighten to 30 Nm .
7. Position handbrake cable abutments to caliper brackets and secure with NEW clips.
8. Align handbrake cables to calipers, fit clevis pins and secure with NEW ’R’ clips.
9. Position handbrake cables to luggage compartment bulkhead and secure clips with bolts.
10. Position air intake duct to subframe and secure with clip.
11. Fit handbrake cables to air cleaner mounting bracket.
12. Fit cables to handbrake compensator.
13. Position cables and secure with handbrake abutment clamp.
14. Fit front console. See BODY, Interior trim components.
15. Untie and position coolant hoses.
16. Fill engine coolant. See COOLING SYSTEM, Adjustments.
17. Fit engine cover. See ENGINE, Repairs.
18. Fit engine compartment access panel.See BODY, Exterior fittings.
19. Adjust handbrake cable. See Adjustments.
