Front brake disc - MGF trophy

FRONT BRAKE DISC - MGF TROPHY

Service repair no - 70.10.10

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove road wheel(s).

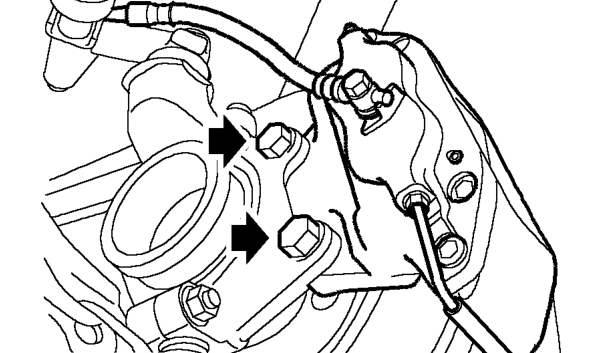

3. Remove 2 bolts securing caliper assembly to hub.
4. Remove caliper assembly from hub and tie aside.

CAUTION: Do not allow caliper to hang on brake hose.

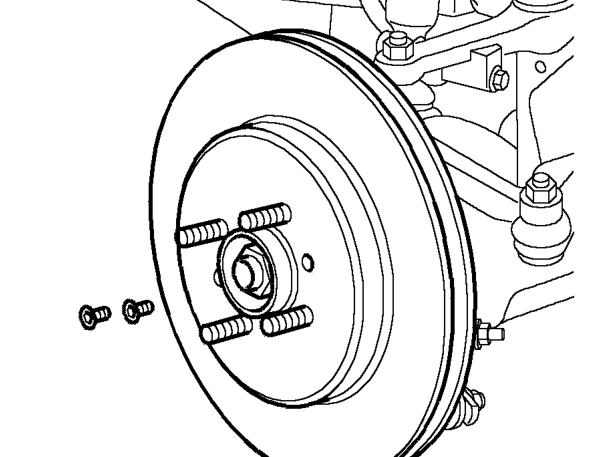

5. Remove 2 screws securing brake disc to drive flange.
6. Remove brake disc.

CAUTION: Brake discs must be renewed in pairs, unless one disc requires changing before 1000 miles (1500 kilometers) from new.

Refit

1. Wire brush drive flange to remove all corrosion deposits. Clean new brake disc.
2. Fit brake disc to drive flange, fit and tighten screws to 7 Nm.
3. Examine brake pads and renew if necessary.
4. Check brake disc runout.
5. Position caliper to hub,fit and tighten bolts to 85 Nm.
6. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
7. Remove stand(s) and lower vehicle.
