MG TF Factory Workshop Manual (2002-2005)19 · Heating and ventilation
19 · Heating & A/C

Controls - heater (page 2 of 2)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Heating and ventilationControls - heater · page 2 of 2

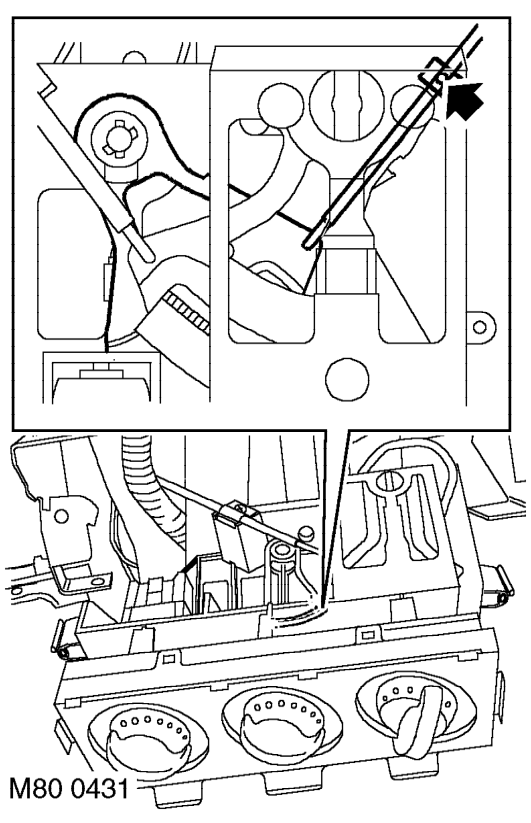

Diagram

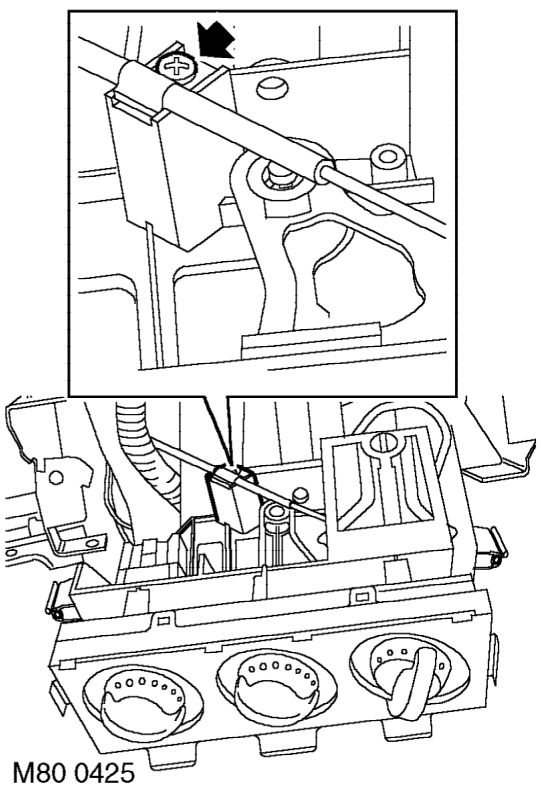

  1. Loosen screw securing temperature control outer cable and release inner cable from control lever.
Loosen screw securing temperature control outer cable and release inner cable from control

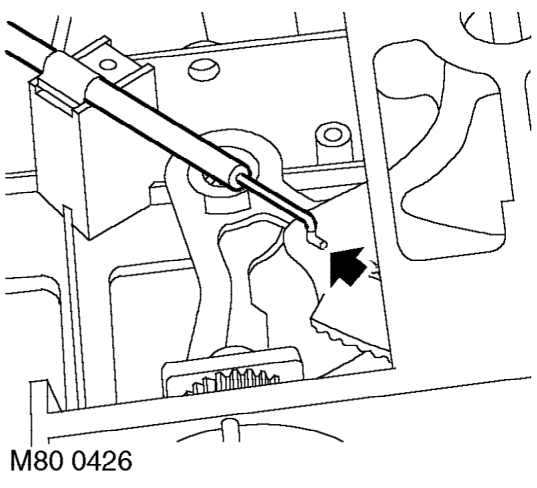

  1. Loosen screw securing distribution cable control outer cable.
Loosen screw securing distribution cable control outer cable.
  1. Release inner cable from control lever.
  2. Remove control assembly.
