Automatic gearboxGearbox assembly · page 4 of 7
Diagram

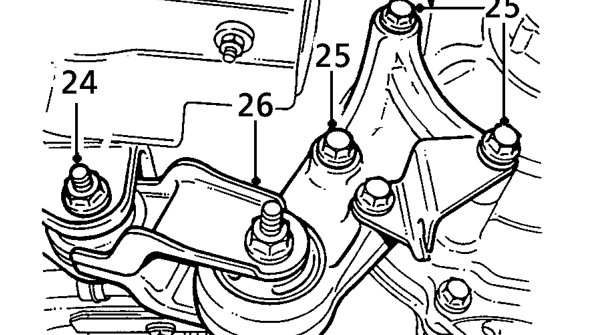

  1. Remove bolt securing engine steady bar to body.
  2. Remove 3 bolts securing engine steady bar bracket to gearbox.
  3. Remove steady bar bracket.
  4. Drain gearbox fluid. See REPAIR MANUAL - Maintenance.
  5. Remove both drive shaft and hub assemblies. See REPAIR MANUAL - Automatic Gearbox - Differential Oil Seal.
Remove both drive shaft and hub assemblies. See REPAIR MANUAL - Automatic Gearbox - Differ

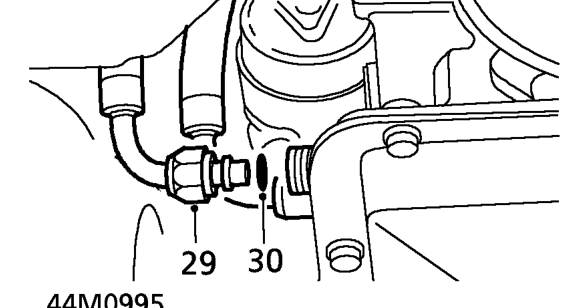

  1. Disconnect fluid cooler hoses from adapators on gearbox.
  2. Remove and discard 2 ’O’ rings.

CAUTION: Plug the connections.

  1. Position hoses aside.
Position hoses aside.

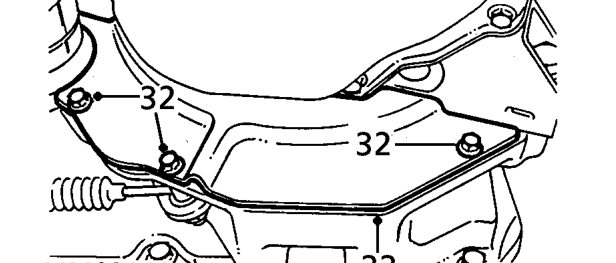

  1. Remove 3 bolts securing flywheel lower cover plate to engine.
  2. Remove cover plate.
Remove cover plate.

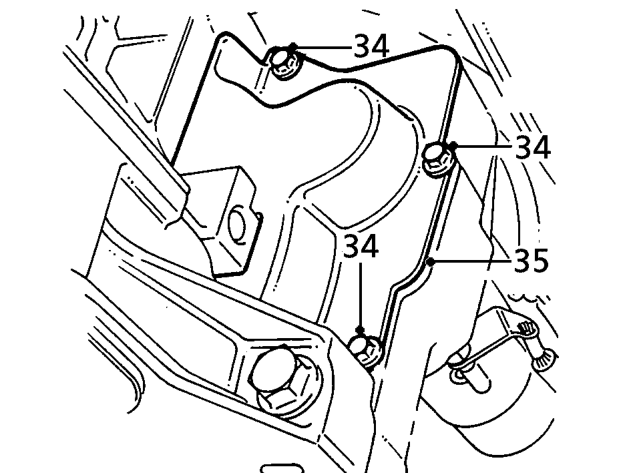

  1. Remove 3 bolts securing flywheel front cover plate.
  2. Remove cover plate.
